Assembly

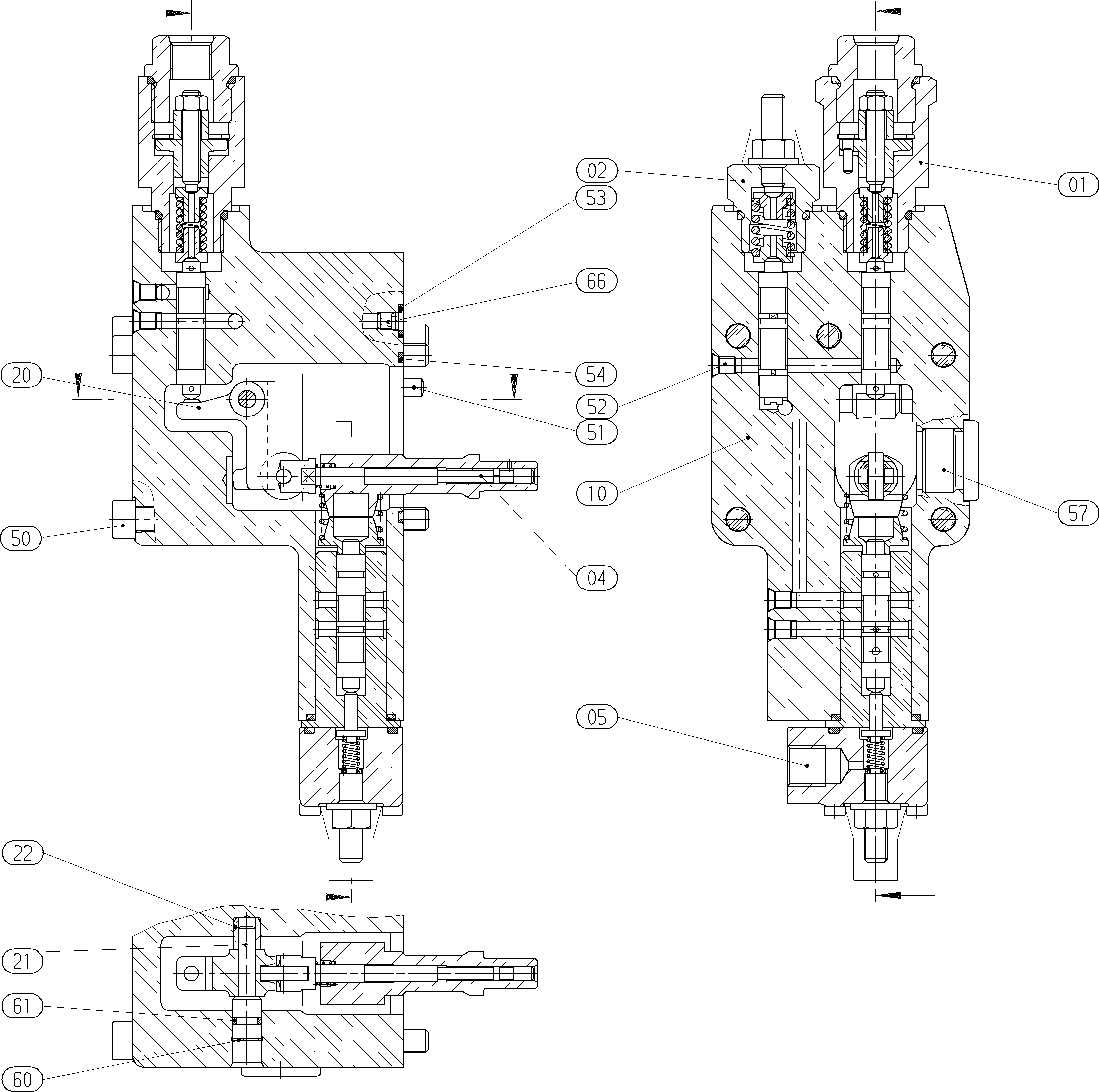

REGULATORR909442691
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909441716 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| 2 | R909437750 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R909436851 | MEASURING PISTON Assembly parts list →L | 1 | ||
| 5 | R902224982 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R909435479 | CONTROL HOUSING | 1 | ||
| R909431926 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083053 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909156494 | NOZZLE | 1 |
