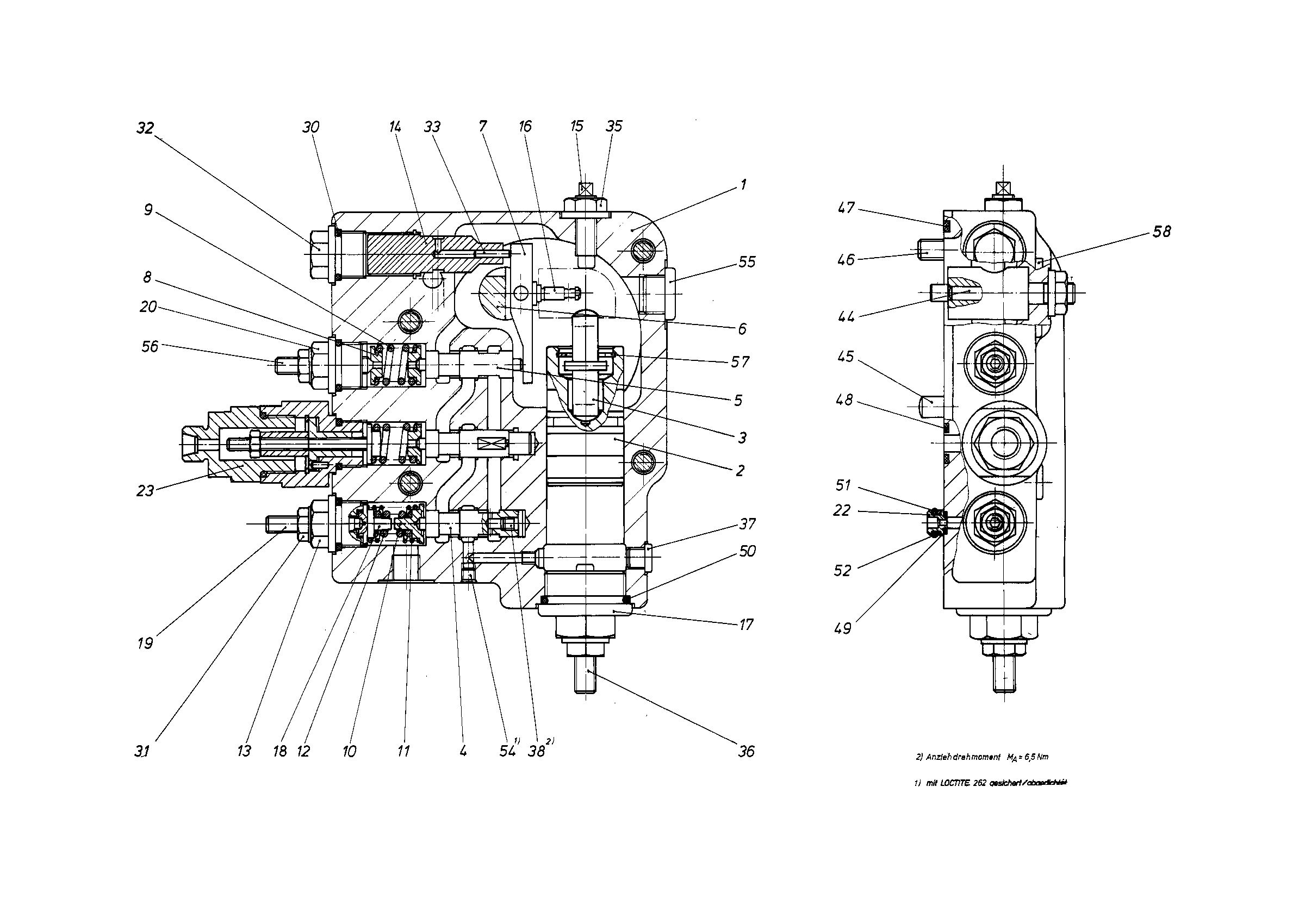

Assembly
REGULATORR909448986
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909449317 | CONTROL HOUSING | 1 | ||
| R909449318 | POSITIONING PISTON | 1 | ||
| R909431052 | ADJUSTING BOLT | 1 | ||
| R909425851 | CONTROL PISTON | 1 | ||
| R909425849 | CONTROL PISTON | 1 | ||
| R909432197 | ECCENTRIC | 1 | ||
| R909430912 | LEVER | 1 | ||
| R909408853 | SPRING DISK | 2 | ||
| R909426055 | COMPRESSION SPRING | 1 | ||
| R909439104 | SPRING BOLT | 1 | ||
| R909439100 | COMPRESSION SPRING | 1 | ||
| R909439099 | COMPRESSION SPRING | 1 | ||
| R909435133 | SCREW PLUG | 1 | ||
| R909439541 | GUIDE BUSHING | 1 | ||
| R909410086 | SETSCREW | 1 | ||
| R909423104 | PISTON PAD | 1 | ||
| R909420811 | SCREW PLUG | 1 | ||
| R909439103 | SPRING BOLT | 1 | ||
| R909435138 | SETSCREW | 1 | ||
| R909408860 | SCREW PLUG | 1 | ||
| R909435015 | SEAL BUSHING | 2 | ||
| R909433775 | PRESSURE REGULATOR Assembly parts list →L | 1 | ||
| R909083758 | O-RINGD | 3 | ||
| R909152707 | SEALING NUTD | 2 | ||
| R909083239 | SCREW PLUG | 1 | ||
| R909426067 | MEASURING PISTON | 1 | ||
| R909152426 | SEALING NUTD | 3 | ||
| R909154690 | SETSCREW | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909156494 | NOZZLE | 1 | ||
| R909157042 | STRAIGHT PIN | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909083067 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086949 | O-RINGD | 1 | ||
| R909086729 | O-RINGD | 1 | ||
| R909157512 | O-RINGD | 2 | ||
| R909830076 | O-RINGD | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R909087062 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153555 | SETSCREW | 1 | ||
| R909157872 | RETAINING RING | 1 | ||
| R909151692 | SCREW PLUGD | 1 |
