Assembly

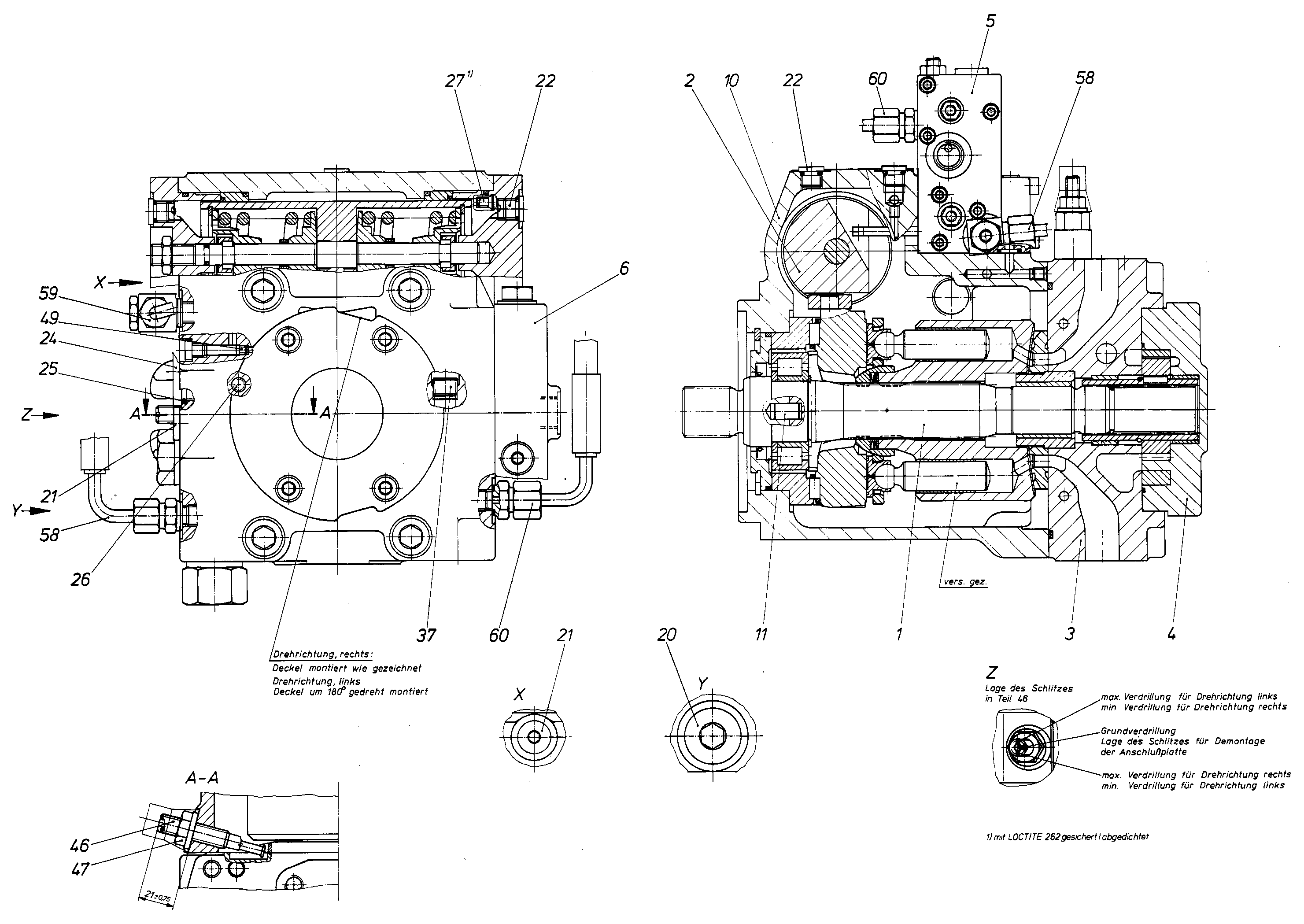

AXIAL-PISTON PUMPR909601522
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909601239 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909601524 | CONTROL Assembly parts list →L | 1 | ||
| R909600236 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909429454 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909601348 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902159744 | FILTERING PLATE Assembly parts list →L | 1 | ||
| R909440945 | HOUSING | 1 | ||
| R909430641 | POITIONING PIN | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154478 | SCREW PLUGD | 5 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831347 | PLUG | 1 | ||
| R909601531 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909601532 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909601533 | HYDRAULIC LINE Assembly parts list →L | 1 |
