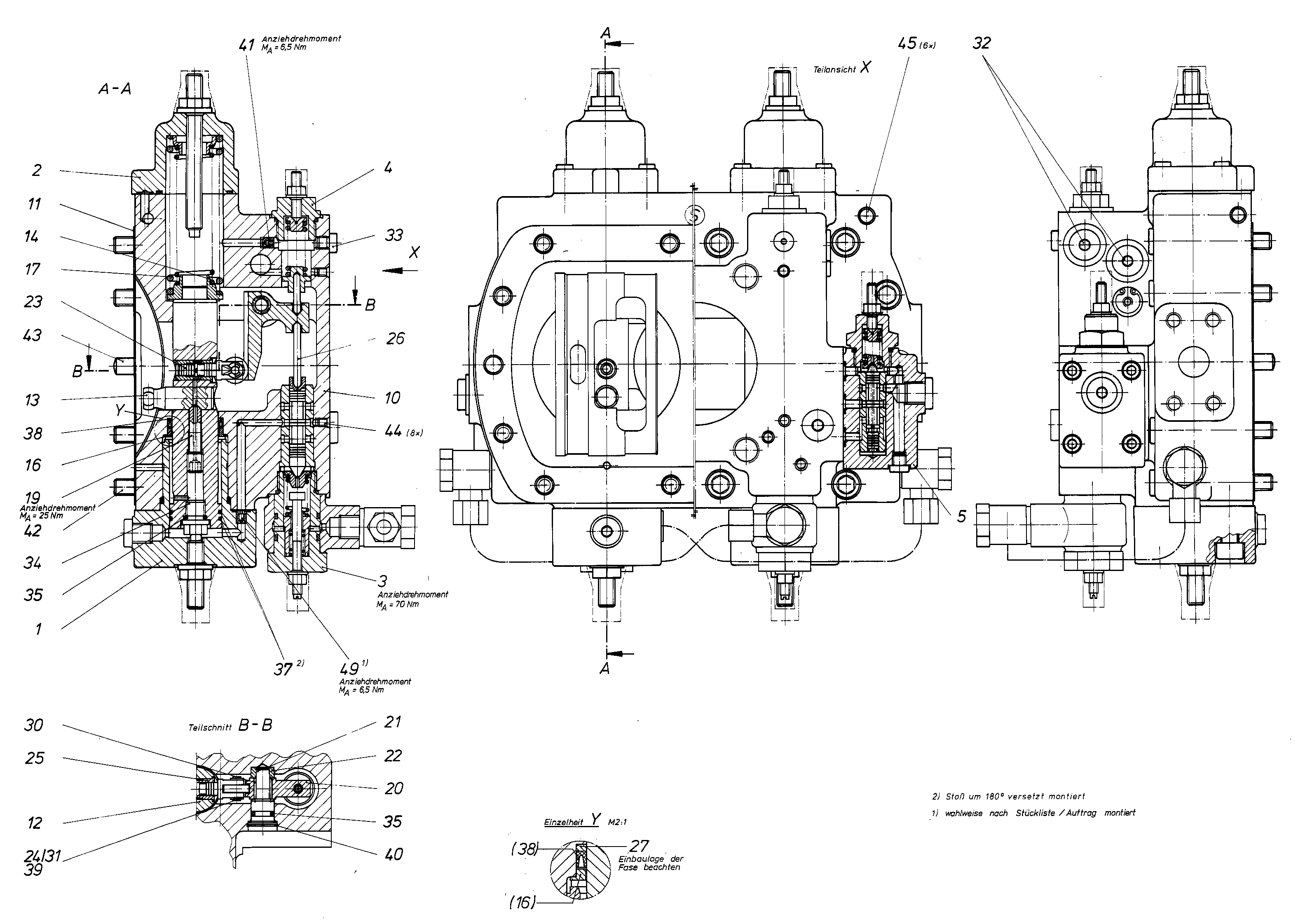

Assembly
CONTROLR909611267
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418657 | COVER Assembly parts list →L | 2 | ||
| R909418658 | COVER Assembly parts list →L | 2 | ||
| R909420175 | CONTROL PART Assembly parts list →L | 2 | ||
| R909420346 | ADJUSTING PART Assembly parts list →L | 2 | ||
| R909418660 | SEQUENCE VALVE Assembly parts list →L | 2 | ||
| R909425846 | CONTROL HOUSING | 1 | ||
| R909650390 | SEALD | 1 | ||
| R909424627 | POSITIONING PISTON | 2 | ||
| R909425518 | POSITIONING STUD | 2 | ||
| R909416594 | SPRING DISK | 2 | ||
| R909422951 | RING | 2 | ||
| R909416021 | COMPRESSION SPRING | 2 | ||
| R909449055 | SETSCREW | 2 | ||
| R909418642 | LEVER | 2 | ||
| R909418641 | BEARING BOLT | 2 | ||
| R909412689 | BUSHING | 2 | ||
| R909651076 | MEASURING PISTON | 2 | ||
| R909411231 | BOLT | 2 | ||
| R909420208 | MEASURING BUSHING | 2 | ||
| R909421355 | PIN | 2 | ||
| R909422952 | WASHER | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909151979 | SCREW PLUGD | 4 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909083236 | SCREW PLUG | 2 | ||
| R909083749 | O-RINGD | 4 | ||
| R902602841 | STEEL SEALING RINGD | 4 | ||
| R909156544 | ROD SEALD | 2 | ||
| R909085810 | LOCKING WASHER | 4 | ||
| R909083382 | RETAINING RING | 2 | ||
| R909156492 | NOZZLE | 2 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 12 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156494 | NOZZLE | 2 |
