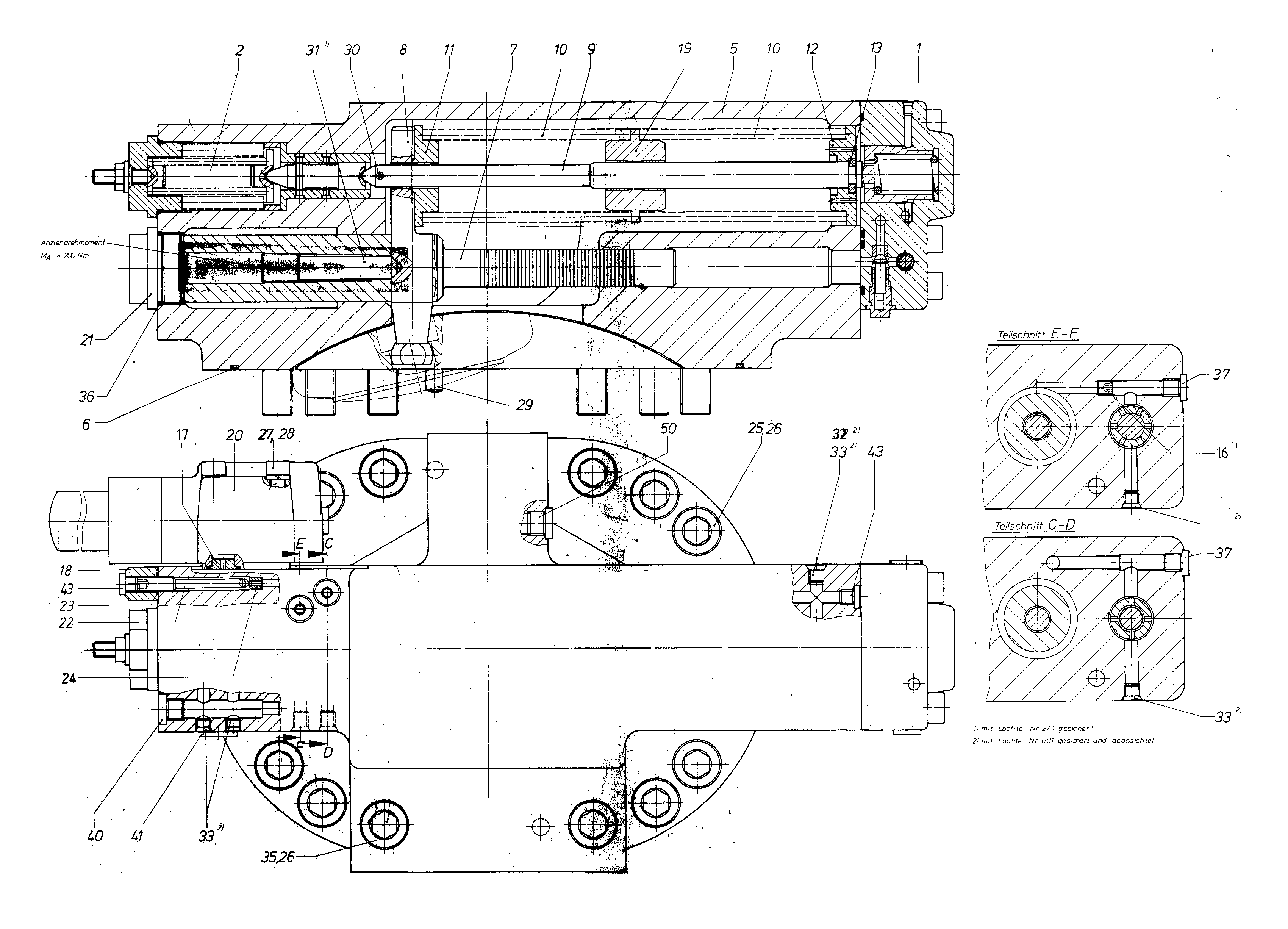

Assembly
CONTROLR910803801
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910849286 | COVER Assembly parts list →L | 1 | ||
| R910836133 | CONTROL PART Assembly parts list →L | 1 | ||
| R910803803 | COVER PLATE | 1 | ||
| R910801399 | O-RINGD | 1 | ||
| R910841994 | POSITIONING PISTON | 1 | ||
| R902413796 | POSITIONING STUD | 1 | ||
| R910596752 | GUIDE ROD | 1 | ||
| R910596779 | COMPRESSION SPRING | 2 | ||
| R910582468 | SPRING DISK | 1 | ||
| R910582476 | SPRING DISK | 1 | ||
| R910582743 | RING | 1 | ||
| R910505277 | THROTTLE SCREW | 1 | ||
| R910849812 | THROTTLE DISC | 1 | ||
| R910803798 | CAP NUT | 1 | ||
| R910596728 | SPRING GUIDE Assembly parts list →L | 1 | ||
| R901327580 | PROPORTIONAL PRESSURE RELIEF VALVED | 1 | ||
| R910583758 | SCREW PLUG | 1 | ||
| R910803797 | SETSCREW | 1 | ||
| R910514691 | O-RINGD | 1 | ||
| R910802973 | BUSHING | 1 | ||
| R910705799 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100838 | SPRING LOCK WASHER | 12 | ||
| R910295396 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100765 | SPRING LOCK WASHER | 4 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910529206 | SLOTTED SPRING PIN | 1 | ||
| R902533059 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910801402 | SOCKET HEAD CAP SCREW | 2 | ||
| R910586897 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153816 | SCREW PLUGD | 1 |
