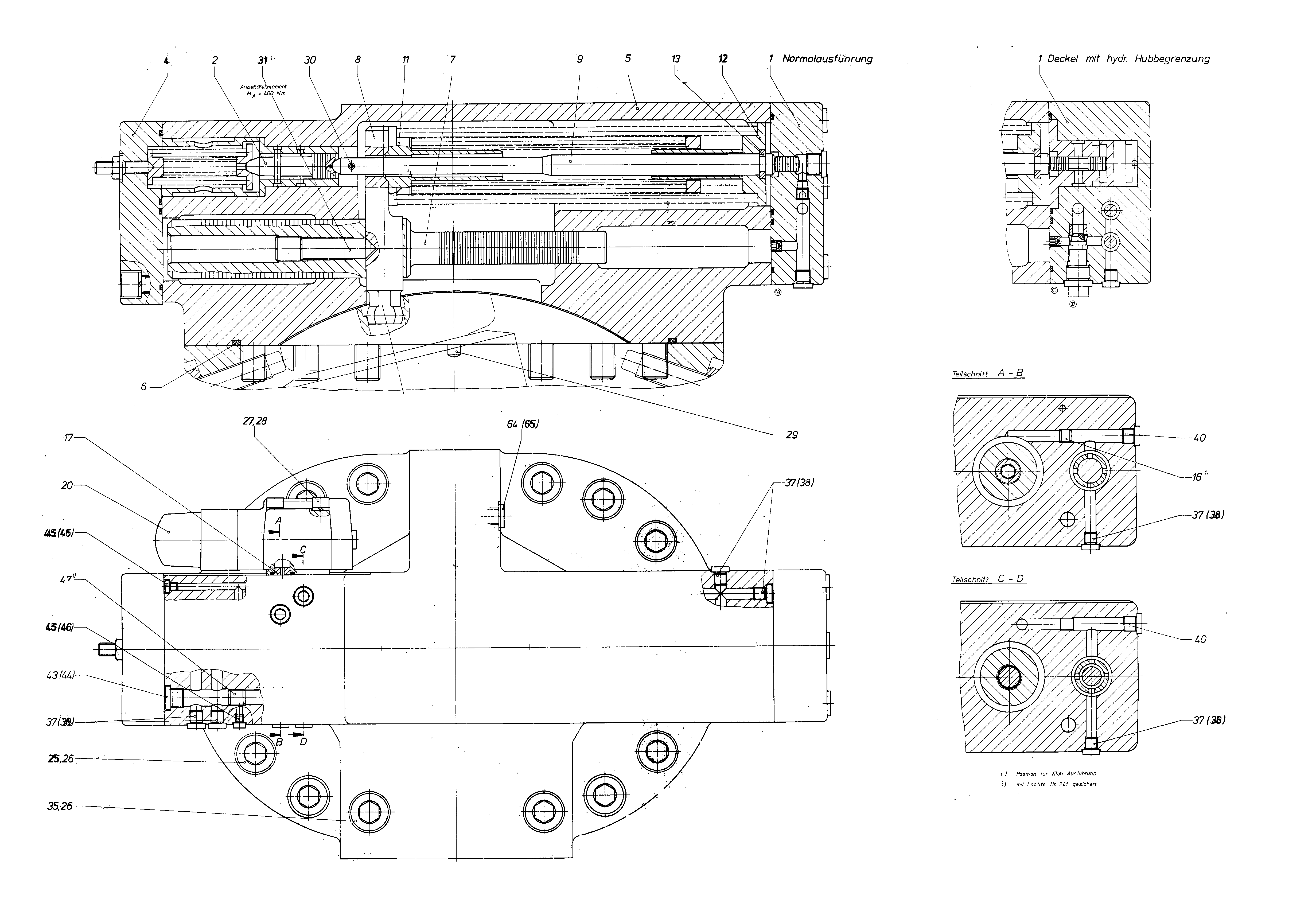

Assembly
ADJUSTING PIECER910842591
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910850055 | COVER Assembly parts list →L | 1 | ||
| R910590681 | CONTROL PART Assembly parts list →L | 1 | ||
| R910805556 | COVER Assembly parts list →L | 1 | ||
| R910814008 | COVER PLATE | 1 | ||
| R910544752 | O-RINGD | 1 | ||
| R910841803 | POSITIONING PISTON | 1 | ||
| R902414363 | POSITIONING STUD | 1 | ||
| R910590304 | GUIDE ROD | 1 | ||
| R910806749 | SPRING BUSH | 1 | ||
| R910806757 | SPRING BUSH | 1 | ||
| R910590207 | RING | 1 | ||
| R910578363 | THROTTLE SCREW | 1 | ||
| R910839299 | THROTTLE DISC | 1 | ||
| R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R910414751 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100846 | SPRING LOCK WASHER | 12 | ||
| R910295396 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100765 | SPRING LOCK WASHER | 4 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910672009 | SLOTTED SPRING PIN | 1 | ||
| R902533060 | SETSCREW | 1 | ||
| R910579947 | SOCKET HEAD CAP SCREW | 2 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R910803383 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
