Assembly

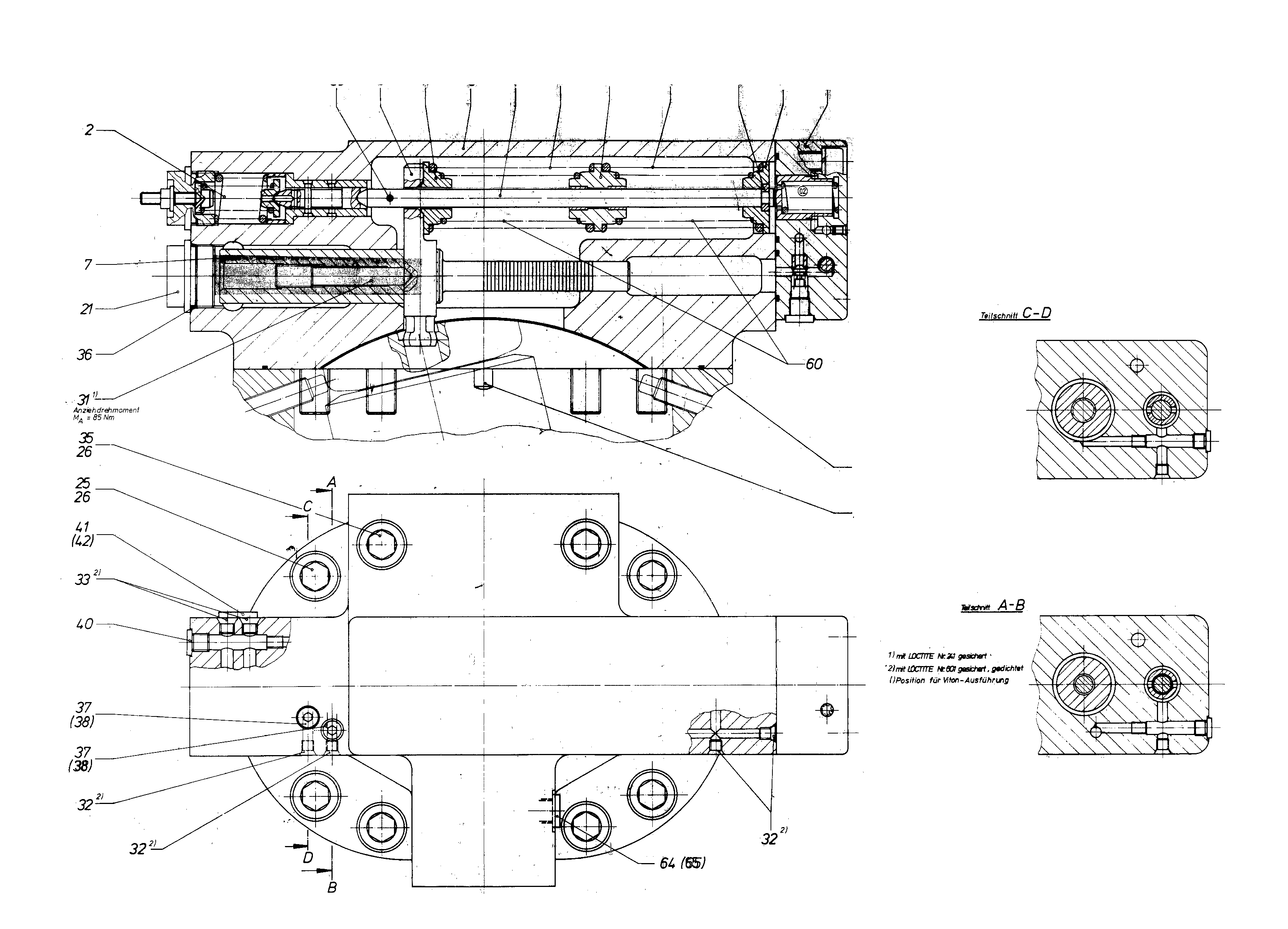

CONTROLR910848611
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910848204 | COVER Assembly parts list →L | 1 | |
| 2 | R910848271 | CONTROL PART Assembly parts list →L | 1 | |
| R910848638 | COVER PLATE | 1 | ||
| 6 | R910945129 | O-RINGD | 1 | |
| R910841846 | POSITIONING PISTON | 1 | ||
| 8 | R902413798 | POSITIONING STUD | 1 | |
| 9 | R910591475 | GUIDE ROD | 1 | |
| 10 | R910597015 | COMPRESSION SPRING | 2 | |
| 11 | R910830135 | SPRING DISK | 1 | |
| 12 | R910830127 | SPRING DISK | 1 | |
| 13 | R910583855 | RING | 1 | |
| 19 | R910830097 | SPRING GUIDE Assembly parts list →L | 1 | |
| 21 | R910591483 | SCREW PLUG | 1 | |
| 25 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| R910100838 | SPRING LOCK WASHER | 8 | ||
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| 30 | R910977277 | SLOTTED SPRING PIN | 1 | |
| 31 | R910807001 | SETSCREW | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 35 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 36 | R910516481 | O-RINGD | 1 | |
| R909153364 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| 41 | R909151694 | SCREW PLUGD | 1 | |
| 60 | R910829137 | COMPRESSION SPRING | 2 | |
| 64 | R909153816 | SCREW PLUGD | 1 |
