Assembly

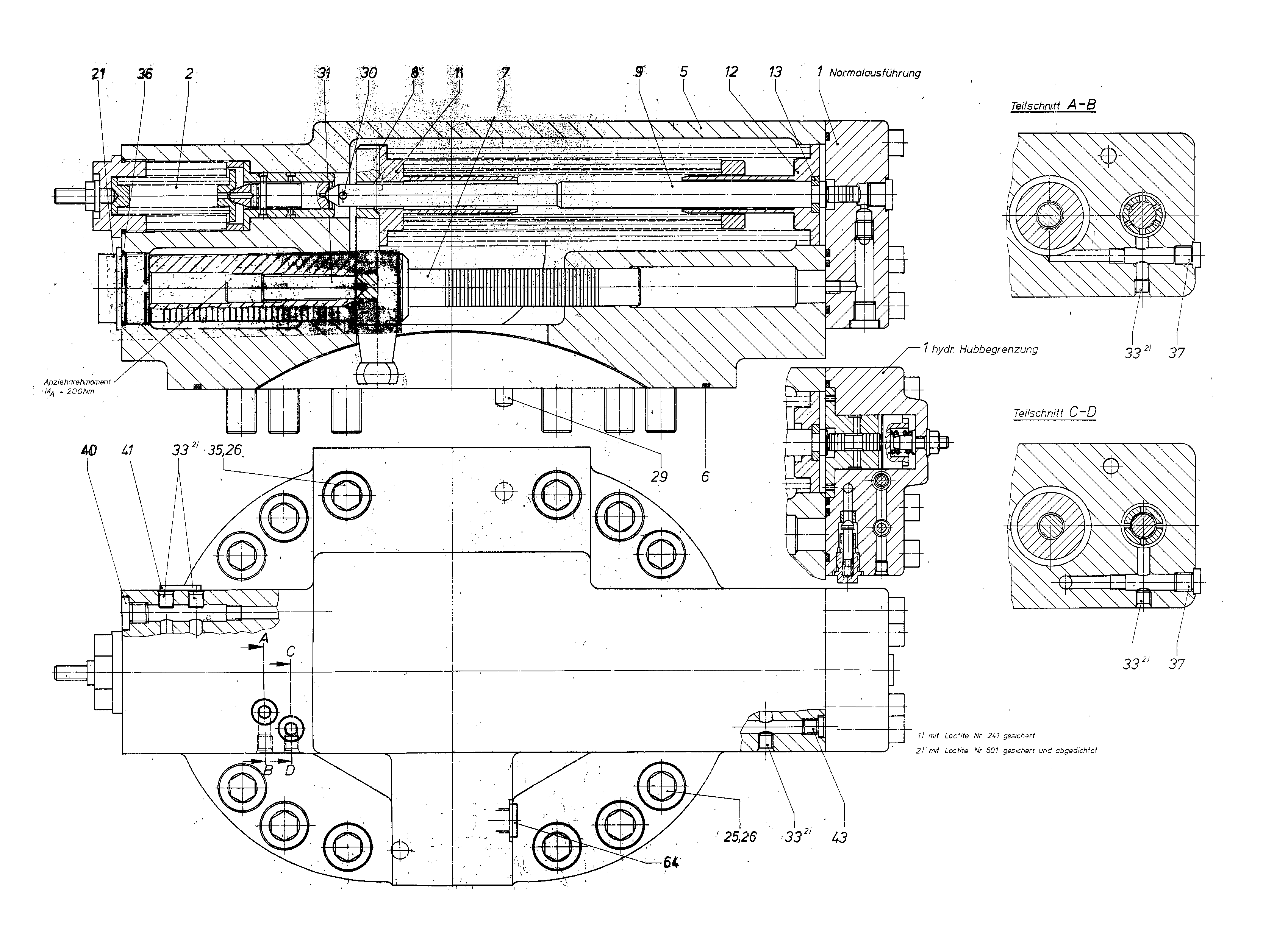

ADJUSTING PIECER910849111
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910849057 | COVER Assembly parts list →L | 1 | ||
| R910588547 | CONTROL PART Assembly parts list →L | 1 | ||
| R910803871 | COVER PLATE | 1 | ||
| R910801399 | O-RINGD | 1 | ||
| R910841994 | POSITIONING PISTON | 1 | ||
| R902413796 | POSITIONING STUD | 1 | ||
| R910596752 | GUIDE ROD | 1 | ||
| R910802522 | SPRING BUSH | 1 | ||
| R910802549 | SPRING BUSH | 1 | ||
| R910582743 | RING | 1 | ||
| R910583758 | SCREW PLUG | 1 | ||
| R910705799 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100838 | SPRING LOCK WASHER | 12 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910529206 | SLOTTED SPRING PIN | 1 | ||
| R902533059 | SETSCREW | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910801402 | SOCKET HEAD CAP SCREW | 2 | ||
| R910586897 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
