Assembly

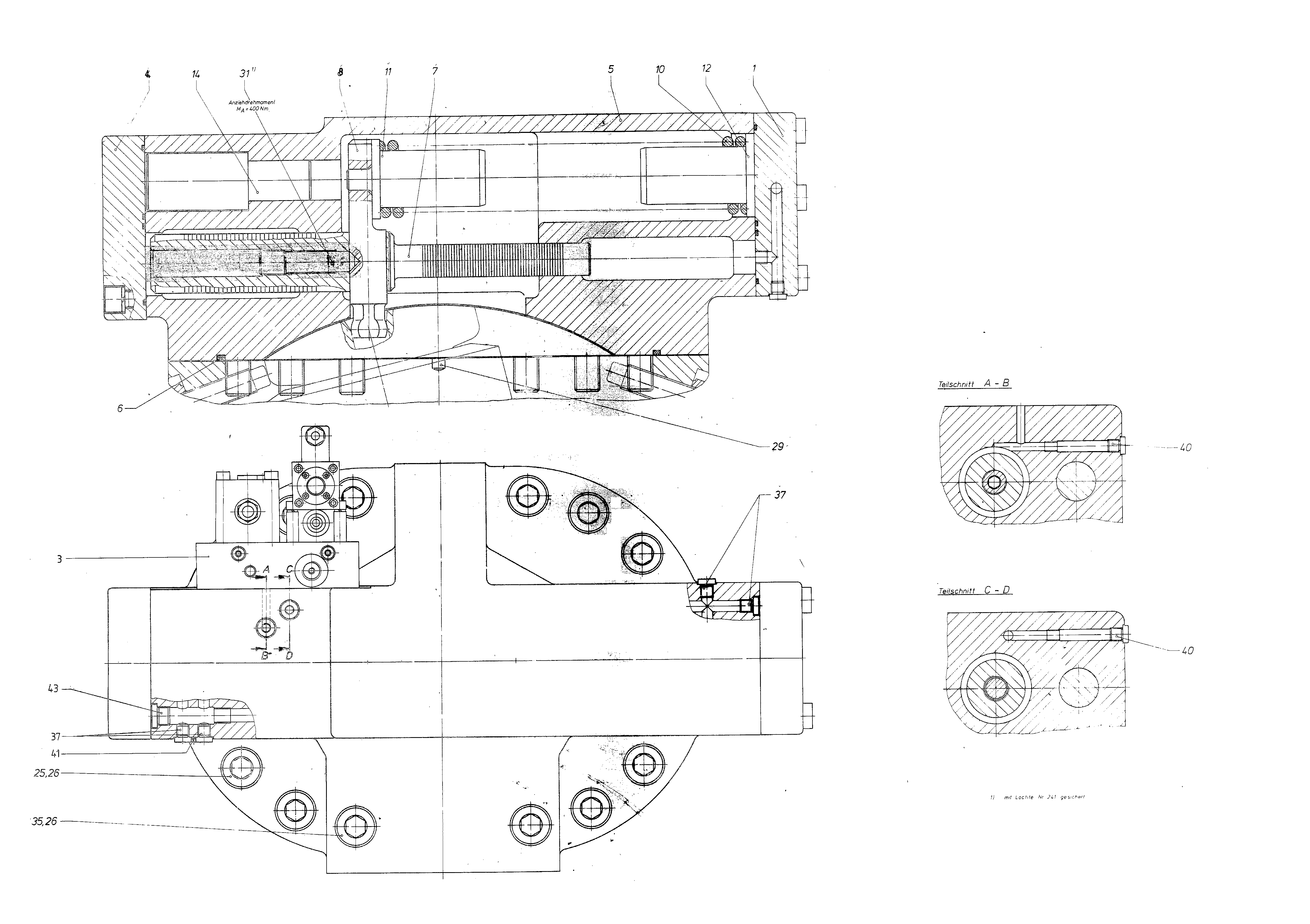

ADJUSTING PIECER910853224
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910598445 | COVER Assembly parts list →L | 1 | ||
| R910836931 | CONNECTING BLOCK Assembly parts list →L | 1 | ||
| R910598488 | COVER Assembly parts list →L | 1 | ||
| R910853232 | COVER PLATE | 1 | ||
| R910544752 | O-RINGD | 1 | ||
| R910841803 | POSITIONING PISTON | 1 | ||
| R902414363 | POSITIONING STUD | 1 | ||
| R910590312 | COMPRESSION SPRING | 1 | ||
| R910806722 | SPRING BUSH | 1 | ||
| R910806714 | SPRING BUSH | 1 | ||
| R910598585 | PLUG | 1 | ||
| R910414751 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100846 | SPRING LOCK WASHER | 12 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R902533060 | SETSCREW | 1 | ||
| R910579947 | SOCKET HEAD CAP SCREW | 2 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
