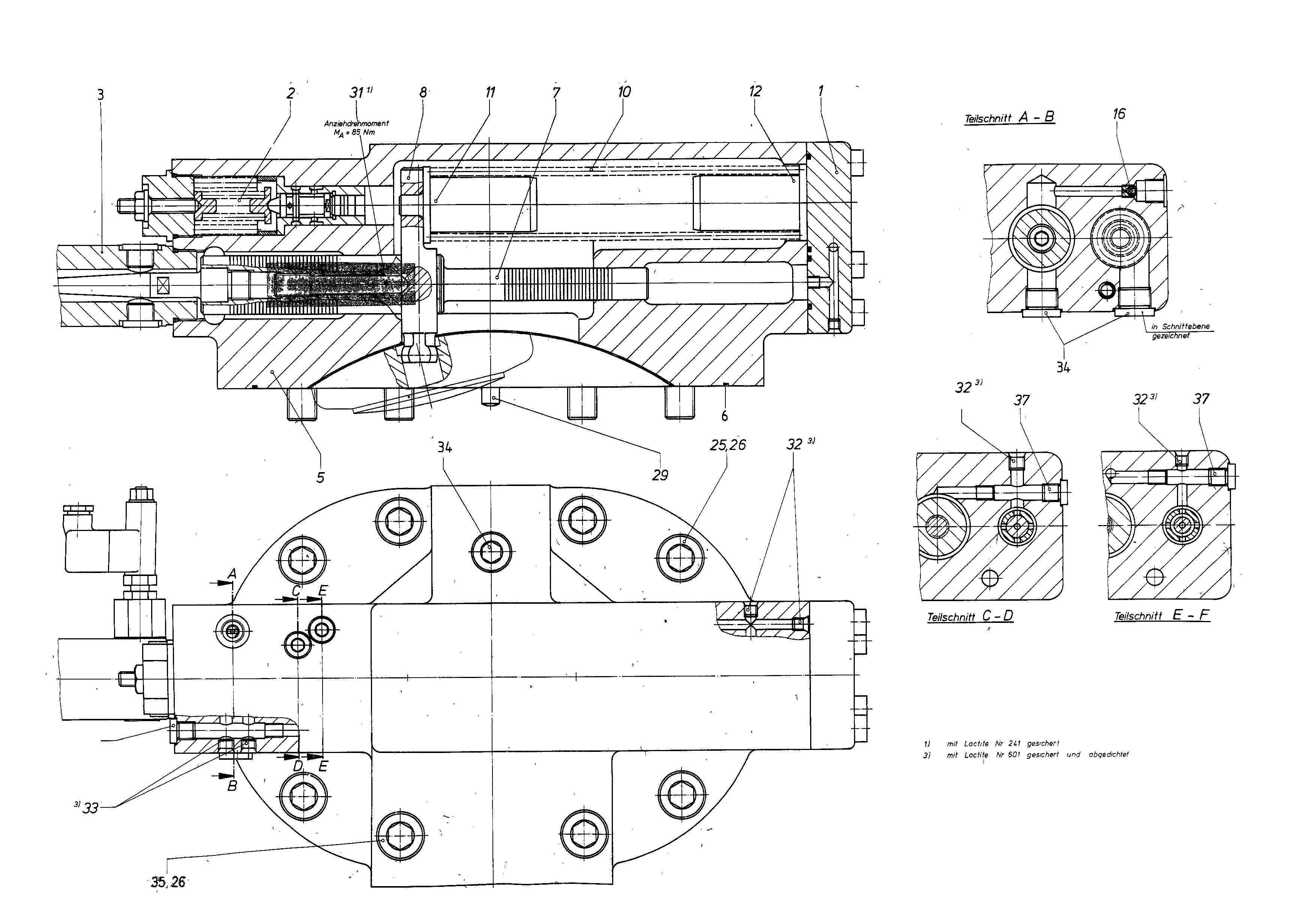

Assembly
CONTROLR910859222
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910587486 | COVER Assembly parts list →L | 1 | ||
| R910595454 | CONTROL PART Assembly parts list →L | 1 | ||
| 3 | R910858919 | INDUCTIVE DISPL. PICK-UP Assembly parts list →L | 1 | |
| 5 | R910804576 | COVER PLATE | 1 | |
| 6 | R910945102 | O-RINGD | 1 | |
| 7 | R910858668 | POSITIONING PISTON | 1 | |
| 8 | R902413797 | POSITIONING STUD | 1 | |
| R910585815 | COMPRESSION SPRING | 1 | ||
| 11 | R910802417 | SPRING BUSH | 1 | |
| R910802425 | SPRING BUSH | 1 | ||
| R910571261 | THROTTLE SCREW | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| 31 | R910807001 | SETSCREW | 1 | |
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909151694 | SCREW PLUGD | 3 | ||
| 35 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| R909151692 | SCREW PLUGD | 3 |
