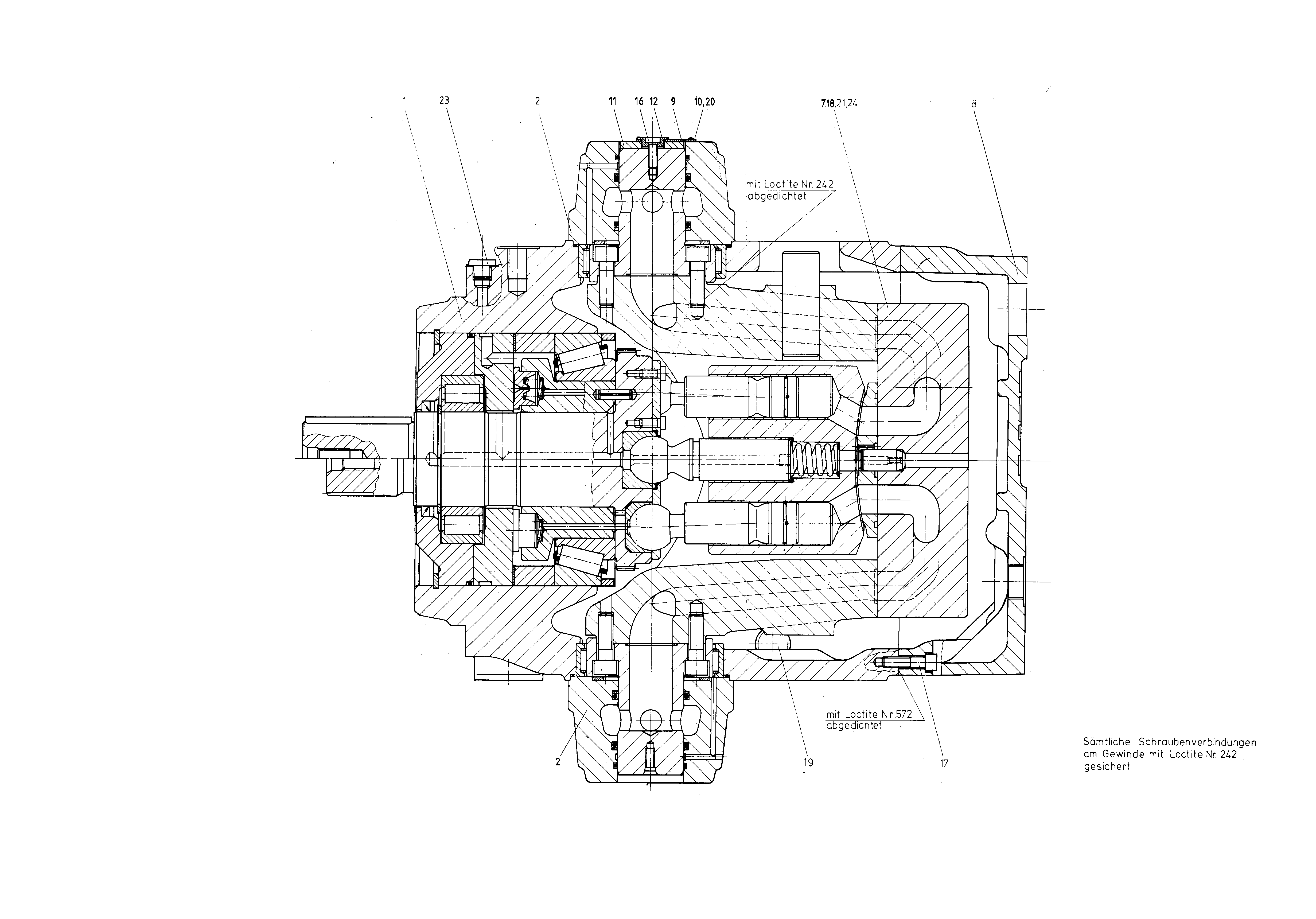

Assembly
BASE UNITR910933392
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | — | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910604836 | PIPE FLANGE Assembly parts list →L | 2 | |
| R910604526 | CONTROL PLATE | 1 | ||
| 8 | R910400637 | HOUSING COVER | 1 | |
| 9 | R910029157 | POINTER | 1 | |
| 10 | R910029165 | DIAL | 1 | |
| 11 | R910604577 | WASHER | 1 | |
| 12 | R910604623 | BUSHING | 1 | |
| 16 | R910265667 | SOCKET HEAD CAP SCREW | 1 | |
| R910109649 | SOCKET HEAD CAP SCREW | 14 | ||
| 18 | R910414751 | SOCKET HEAD CAP SCREW | 8 | |
| R909153861 | SCREW PLUGD | 4 | ||
| R910101265 | ROUND-HEAD GROOVED PIN | 2 | ||
| R910602051 | STRAIGHT PIN | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R910604941 | SEAL RINGD | 4 |
