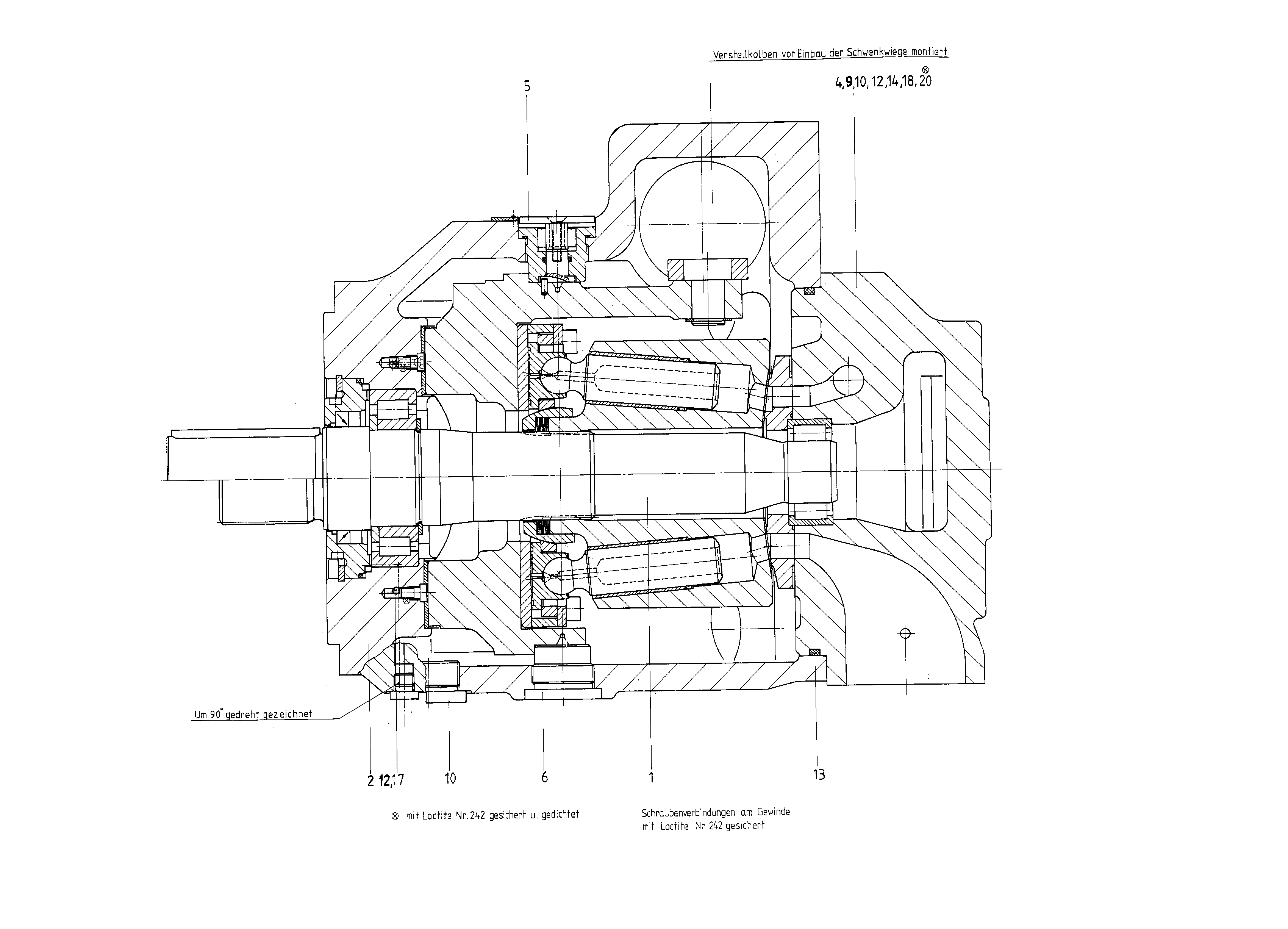

Assembly
BASE UNITR910934085
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910933980 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910932896 | CONNECTION PLATE | 1 | ||
| R910909629 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910909637 | STUD BOLT Assembly parts list →L | 1 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 4 | ||
| R910941718 | SCREW PLUGD | 4 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R910908983 | O-RINGD | 1 | ||
| R902573014 | AXIAL SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910834491 | THROTTLE SCREW | 1 |
