Assembly

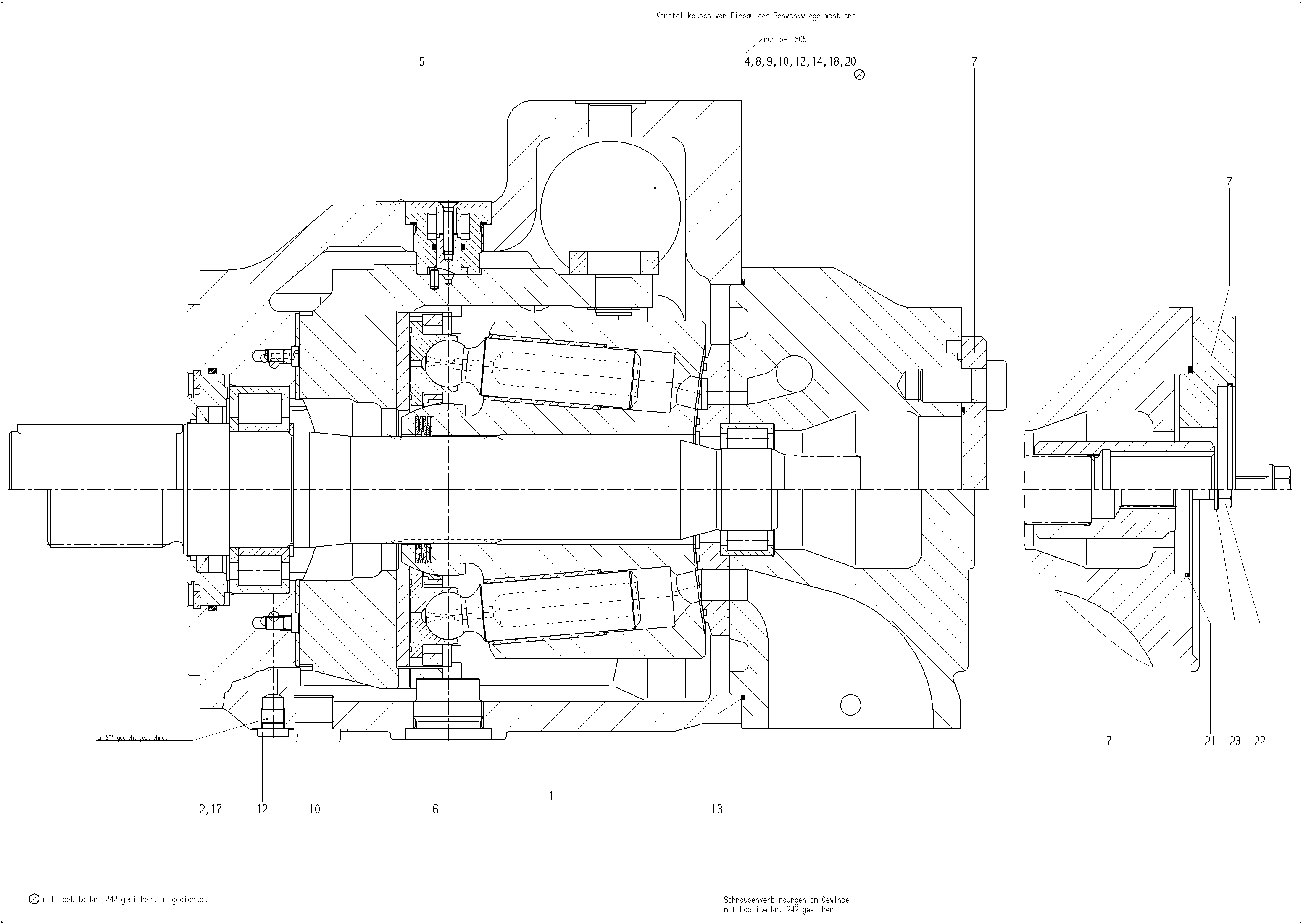

BASE UNITR910945535
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910945531 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910940114 | CONNECTION PLATE | 1 | ||
| R910909629 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910909637 | STUD BOLT Assembly parts list →L | 1 | ||
| R902572931 | SOCKET HEAD CAP SCREW | 8 | ||
| R910941718 | SCREW PLUGD | 4 | ||
| 11 | R909151979 | SCREW PLUGD | 2 | |
| R909153815 | SCREW PLUG | 1 | ||
| R910940894 | O-RINGD | 1 | ||
| R913028081 | AXIAL SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910834491 | THROTTLE SCREW | 1 |
