Assembly

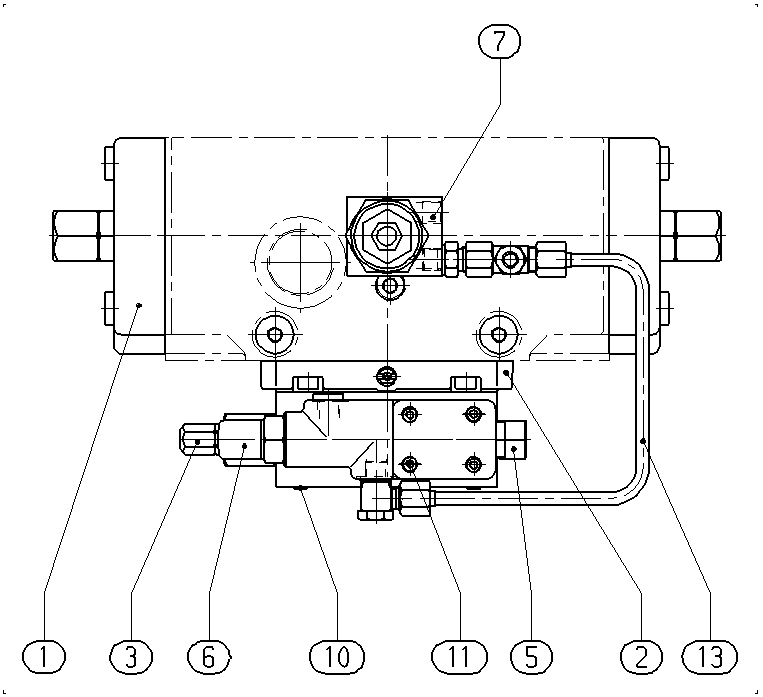

REGULATORR910977285
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910976996 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910977194 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902402984 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983671 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910983432 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910906116 | PILOT VALVE Assembly parts list →L | 1 | ||
| R910903670 | SOCKET HEAD CAP SCREW | 4 | ||
| R910913350 | SOCKET HEAD CAP SCREW | 4 | ||
| R910997204 | PIPING Assembly parts list →L | 1 |
