Unit · AXIAL-PISTON PUMP
AA7V-SL500EL51LZFODR910800515

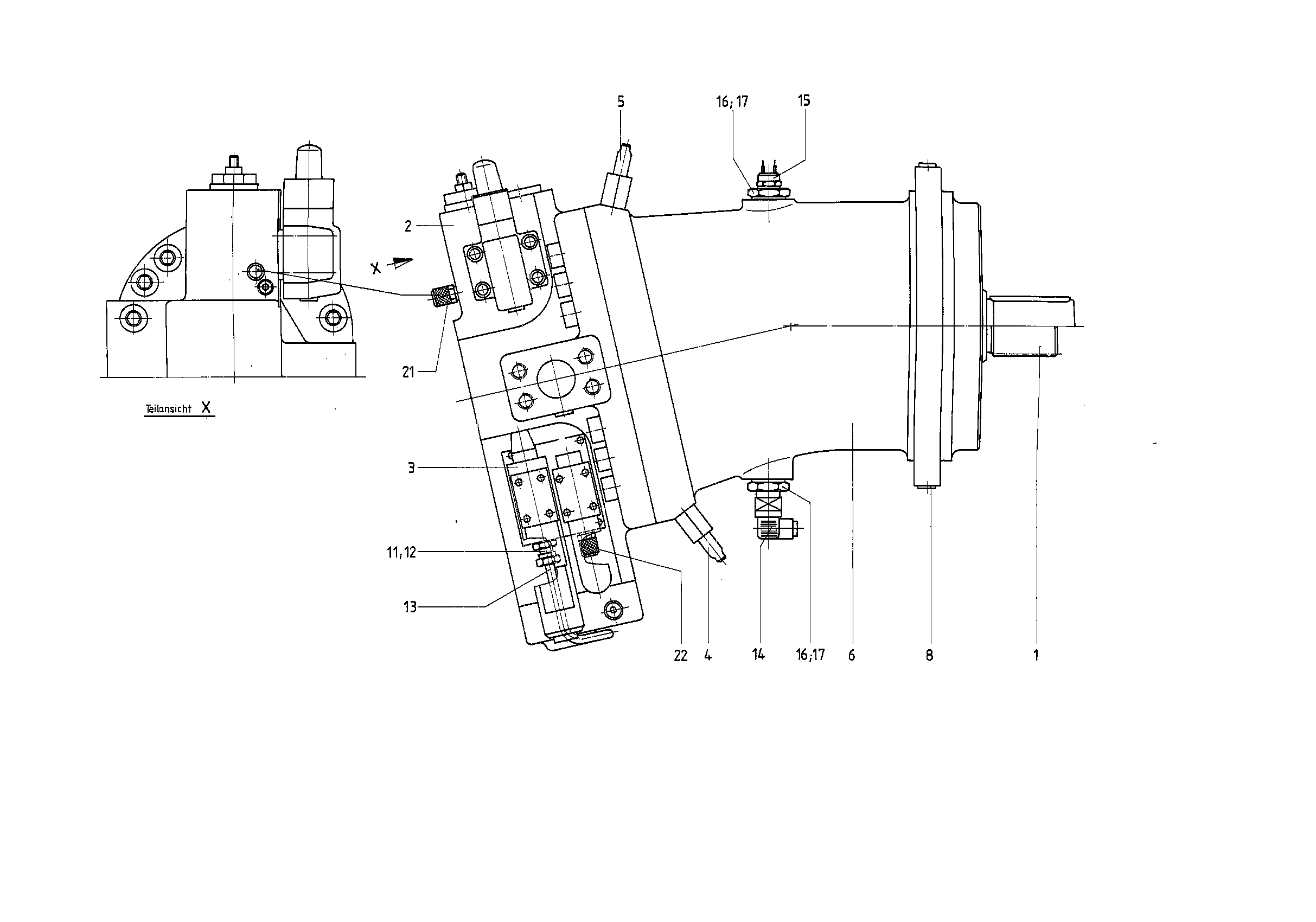

Axial piston pump Bosch Rexroth series A7V, type code AA7V-SL500EL51LZFOD, material number R910800515.
- Number
- R910800515
- Type code
- AA7V-SL500EL51LZFOD
- Group
- A7VSL 500
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910715166 | ROTARY GROUP Assembly parts list →L | 1 | |
| R910803221 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R910802358 | VALVE BLOCK Assembly parts list →L | 1 | ||
| 4 | R910592544 | ADJUSTING PART Assembly parts list →L | 1 | |
| 5 | R910803224 | ADJUSTING PART Assembly parts list →L | 1 | |
| 6 | R910811386 | HOUSING | 1 | |
| 8 | R909156651 | SCREW PLUGD | 2 | |
| 11 | R910913262 | THREADED FASTENER | 1 | |
| 12 | R910903310 | THREADED FASTENER | 1 | |
| 13 | R910136387 | PIPEMYANMAR | 300 | |
| R902601957 | POLLUTION SWITCH | 1 | ||
| R910545368 | THERMOSWITCH | 1 | ||
| 16 | R910774901 | REDUCTION THREADED JOINT | 2 | |
| 17 | R910744662 | SEAL RINGD | 2 | |
| 21 | R910939592 | TEST POINTD | 1 | |
| 22 | R910939593 | TEST POINT | 1 |
