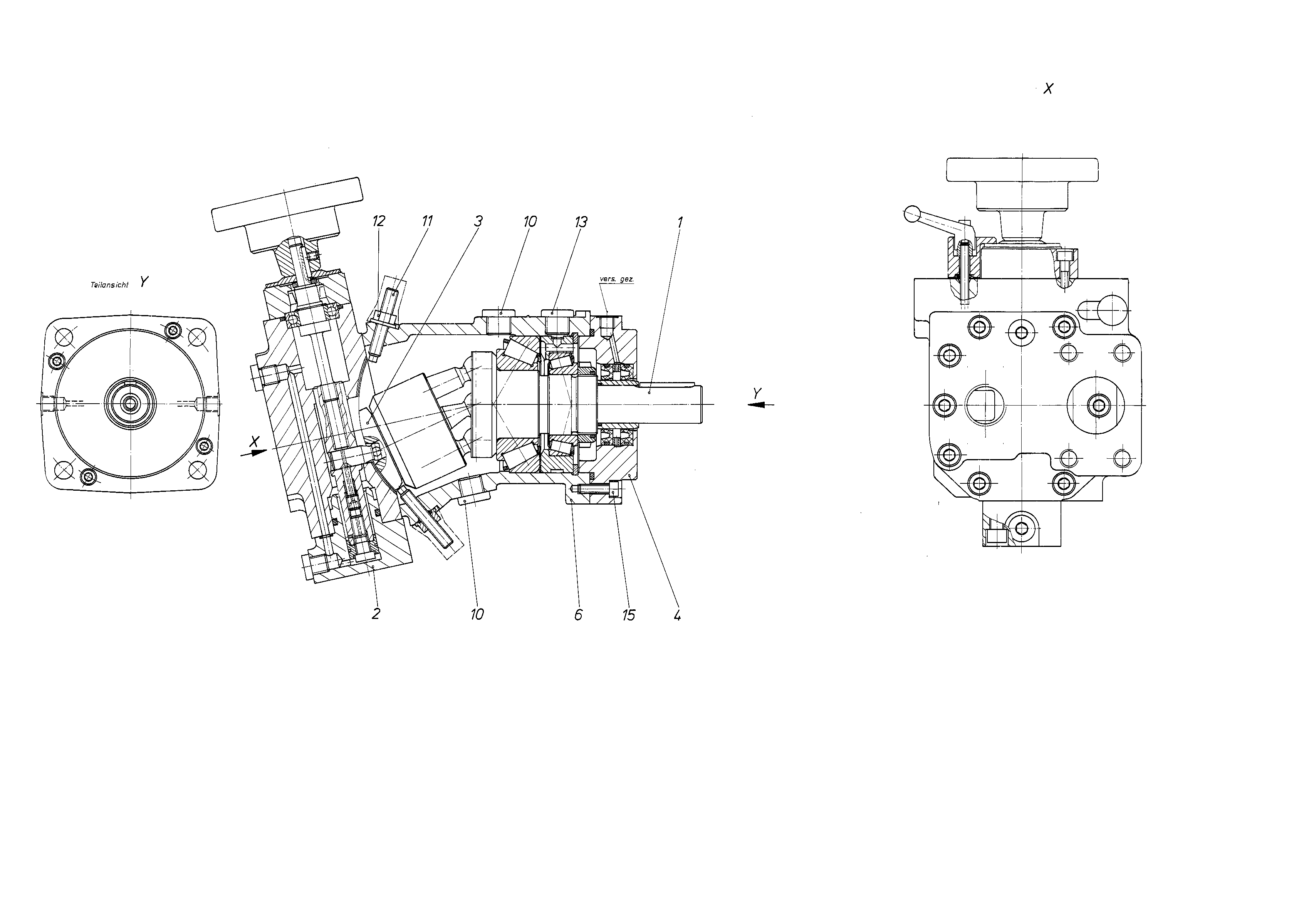

A7VK28MA/61R-WPB09 (R909434811)
CONTROL (195890)

CONTROL
(195890)


1

GUIDE COVER
(195901)

Group »


7

COVER PLATE, CLOCKWISE ROTATION
(195902)


8

SEAL
(58974)


9

POSITIONING PISTON
(195903)


10

POSITIONING STUD
(82280)


12

PISTON
(58978)


13

SOCKET HEAD CAP SCREW
(82279)


16

SETSCREW
(82281)


28

SCREW PLUG
(11681)


31

SOCKET HEAD CAP SCREW
(16444)


32

SOCKET HEAD CAP SCREW
(10430)


35

STRAIGHT PIN
(14017)


50

ADJUSTMENT SPINDLE
(195904)


51

COVER
(195905)


52

CLAMPING DISC
(195906)


53

EXPANSION PIECE
(195907)


54

DISC SPRING
(11286)


55

SHIM RING
(195908)


56

PARALLEL KEY
(195909)


57

SETSCREW
(38433)


58

SHIM RING
(195910)


59

SHIM RING
(10888)


60

SHIM RING
(12213)


61

SOCKET HEAD CAP SCREW
(10506)


62

HANDWHEEL
(195911)


63

CLAMPING LEVER
(195912)


64

ROTARY SHAFT LIP SEAL
(195913)


65

RETAINING RING
(195914)


66

DEEP-GROOVE BALL BEARING
(195915)


67

O-RING
(195916)


68

SETSCREW
(195917)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
