Unit · A2 A10
A2 A105009682
Axial piston pump Bosch Rexroth series A2A, type code A2A10, material number 5009682.
- Number
- 5009682
- Type code
- A2 A10
- Group
- A2 A10
- Edition
- 08/2020

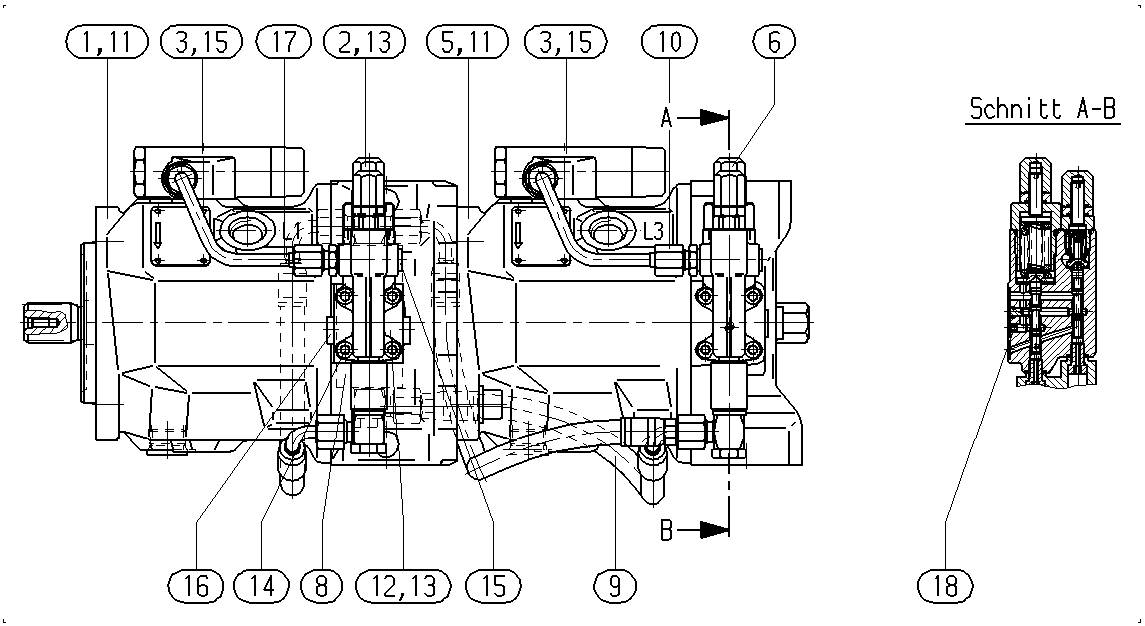

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910948860 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532760 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 2 | ||
| R910996422 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532759 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910940377 | DIAPHRAGM SEAL Assembly parts list →L | 1 | ||
| R910942416 | PIPING PLAN Assembly parts list →L | 1 | ||
| R910963862 | PIPING Assembly parts list →L | 1 | ||
| R910961580 | POWER DIAGRAM | 2 | ||
| R910960135 | INTERMEDIATE PLATE | 1 | ||
| R910514497 | O-RING | 3 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 4 | ||
| R910764647 | SCREW PLUG | 3 | ||
| R909156650 | SCREW PLUG | 2 | ||
| R910960161 | PIPING Assembly parts list →L | 1 | ||
| R902540857 | NOZZLE | 1 | ||
| 19 | R902434482 | SEAL | 1 | |
| 61 | R910109762 | SOCKET HEAD CAP SCREW | 2 | |
| 62 | R902650190 | WASHER | 2 | |
| 70 | R902421945 | SHIPPING PROTECTION | 2 | |
| 71 | R902421948 | SHIPPING PROTECTION | 2 | |
| 72 | R902603190 | SEAL SCREW | 2 | |
| 75 | R909830326 | NAMEPLATE | 1 |
