Unit · PUMP TRANSMISSION
A4VG28EP1/X+A4FM28/X-SVG145R902001124
Pump transmission Bosch Rexroth series A4VG, type code A4VG28EP1/X+A4FM28/X-SVG145, material number R902001124. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1).
- Number
- R902001124
- Type code
- A4VG28EP1/X+A4FM28/X-SVG145
- Group
- A4VG 28
- Edition
- 06/2020

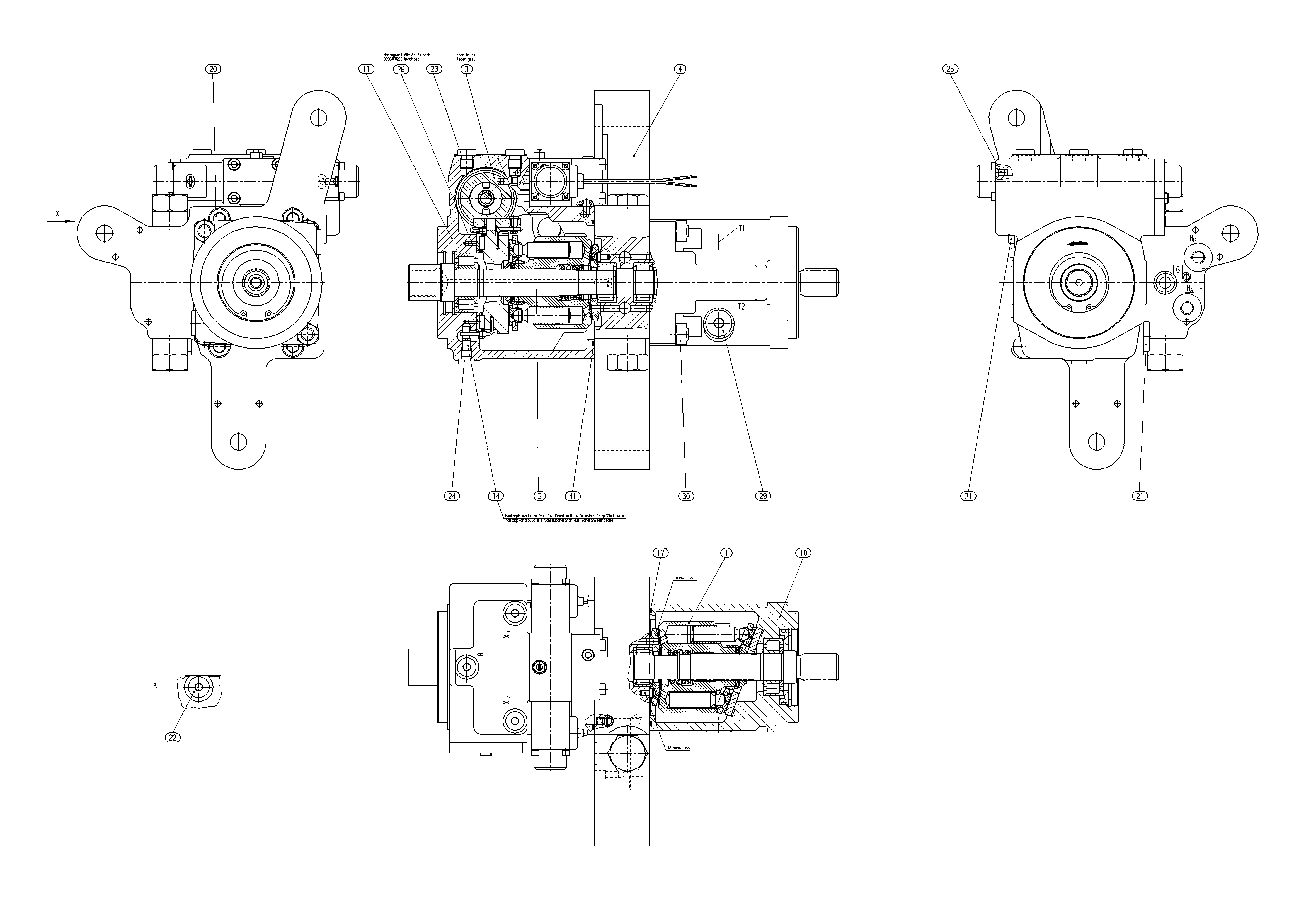

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909448447 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909448445 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909448449 | CONTROL Assembly parts list →L | 1 | ||
| R902001129 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902001133 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909650178 | HOUSING | 1 | ||
| 11 | R909650179 | HOUSING | 1 | |
| R902114380 | PIVOT PIN | 1 | ||
| R909154589 | O-RINGD | 1 | ||
| R909083095 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909150772 | SLOTTED SPRING PIN | 2 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909083615 | HEXAGON NUT | 4 | ||
| R909086547 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| Control device | Proportional control, U = 12 V electric | EP1 |
