Unit · AXIAL-PISTON PUMP
A4VG28EP11/32L-XZXXXN00XE-SR902001182
Axial piston pump Bosch Rexroth series A4VG, type code A4VG28EP11/32L-XZXXXN00XE-S, material number R902001182. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: splined shaft for single pump DIN 5480 (Z). Boost pump: without integrated boost pump without through drive (N). Through drive: without through drive, only for version N and F (00). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E). Standard/special version: special version (-S).
- Number
- R902001182
- Type code
- A4VG28EP11/32L-XZXXXN00XE-S
- Group
- A4VG 28
- Edition
- 06/2020

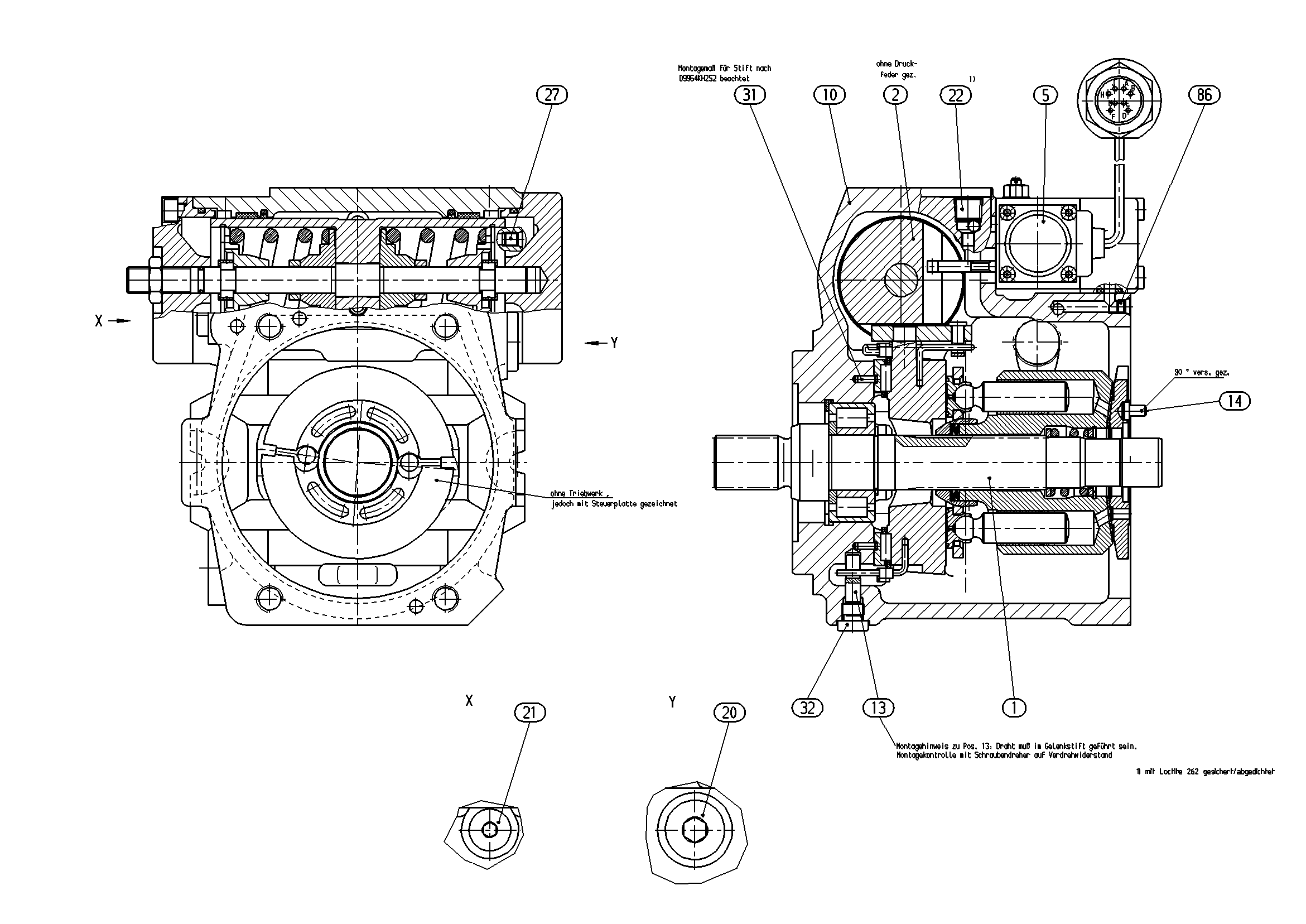

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902026895 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902039537 | CONTROL Assembly parts list →L | 1 | ||
| R902044637 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902001302 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083216 | SCREW PLUG | 2 | ||
| 23 | R909151692 | SCREW PLUGD | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 31 | R913016373 | SLOTTED SPRING PIN | 2 | |
| R909153364 | SCREW PLUG | 1 | ||
| R909415314 | DOUBLE BREAK-OFF PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Boost pump | Without integrated boost pump without through drive | N |
| Through drive | Without through drive, only for version N and F | 00 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
| Standard/special version | Special version | -S |
