Unit · PUMP TRANSMISSION
A4VG28EP1/X+A4FM28/X-ECCOM1,5R902001345
Pump transmission Bosch Rexroth series A4VG, type code A4VG28EP1/X+A4FM28/X-ECCOM1,5, material number R902001345. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1).
- Number
- R902001345
- Type code
- A4VG28EP1/X+A4FM28/X-ECCOM1,5
- Group
- A4VG 28
- Edition
- 06/2020

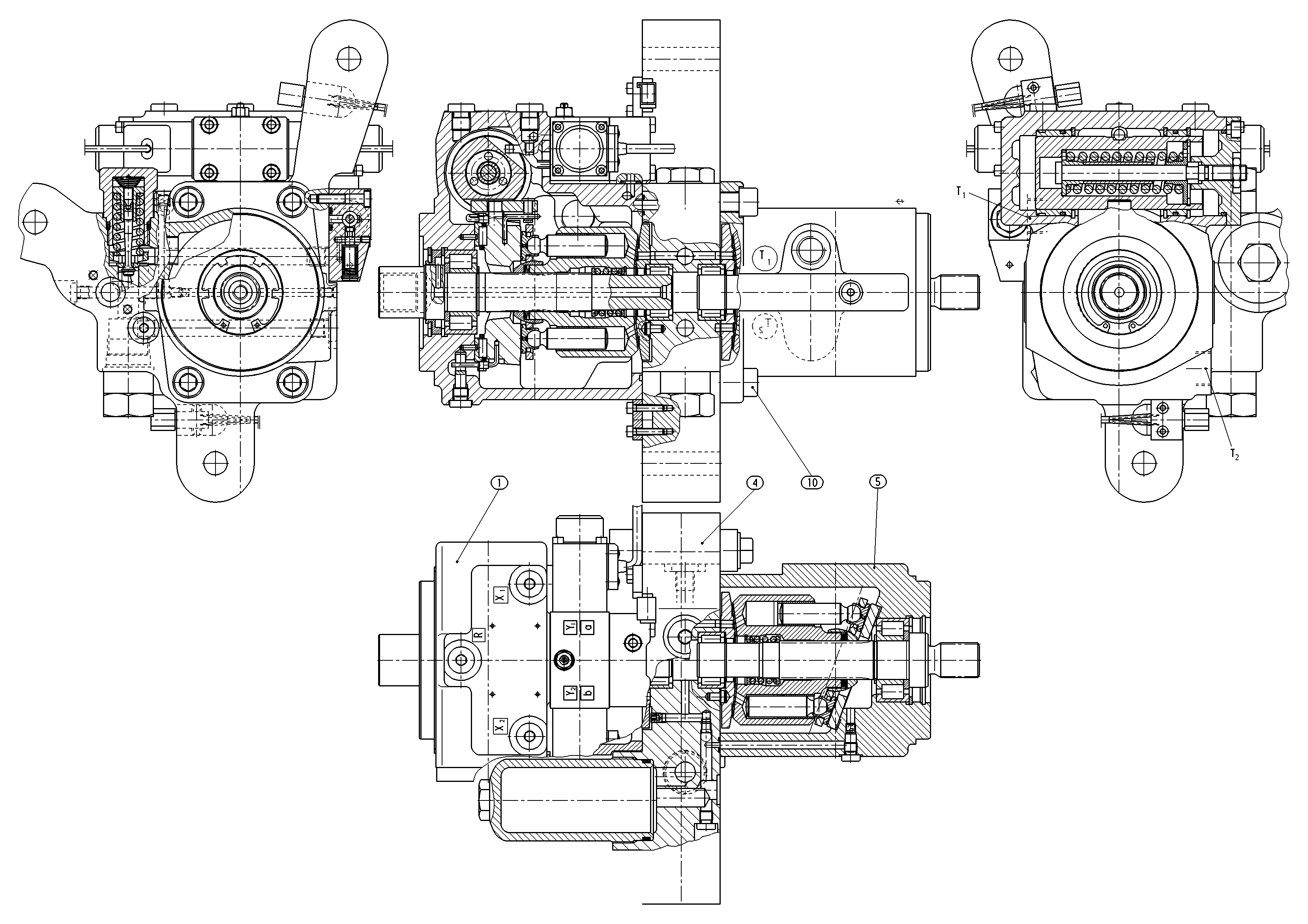

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902001235 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902001295 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902001291 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R909084754 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| Control device | Proportional control, U = 12 V electric | EP1 |
