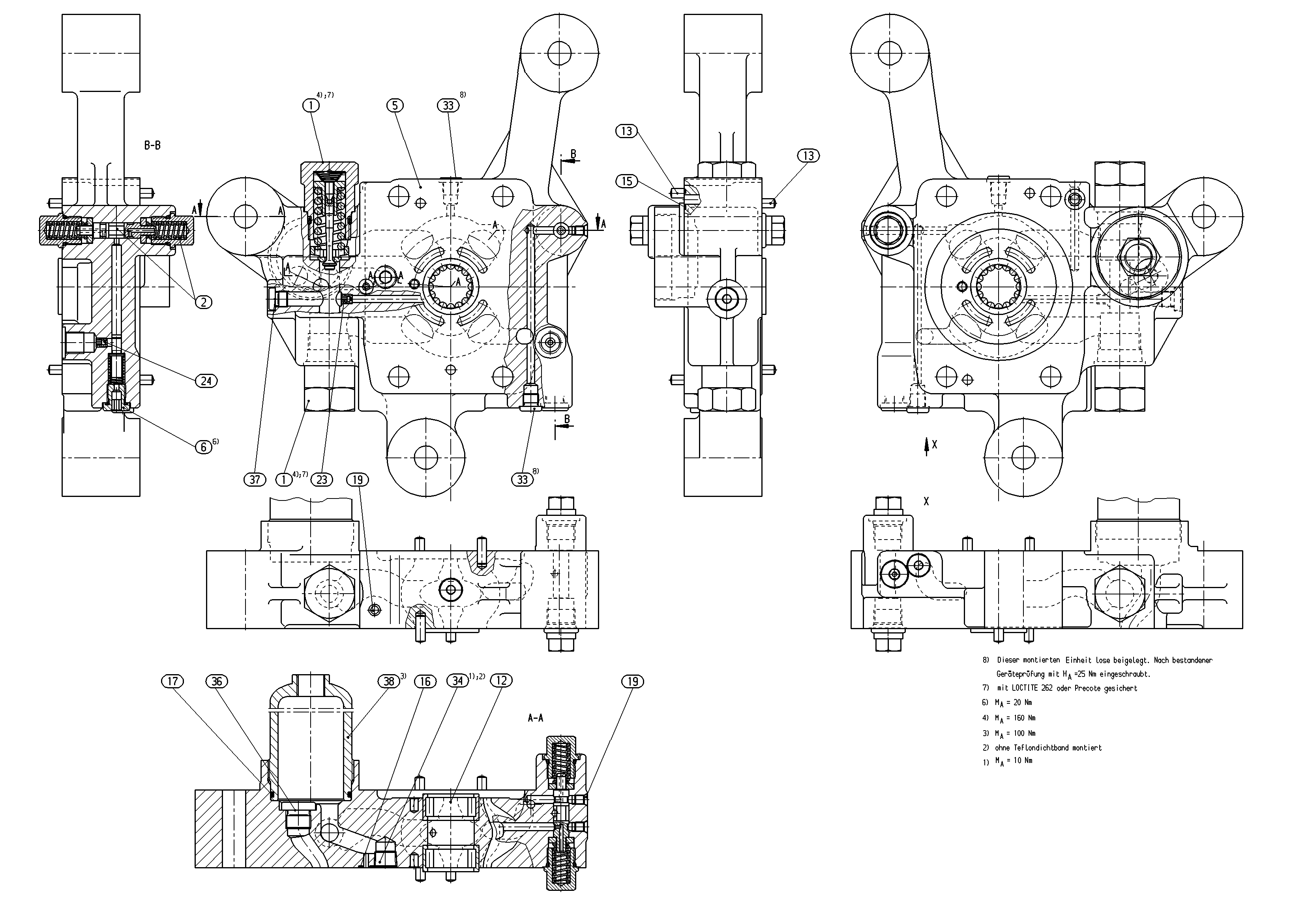

Unit · CONNECTION PLATE
ANPL, A4VG28+A4FM28-ECCOM1,5-DFAR902001370
Connection plate Bosch Rexroth series A4VG, type code ANPL,A4VG28+A4FM28-ECCOM1,5-DFA, material number R902001370.
- Number
- R902001370
- Type code
- ANPL, A4VG28+A4FM28-ECCOM1,5-DFA
- Group
- A4VG 28
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902001496 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902001377 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902047605 | CONNECTION PLATE | 1 | ||
| R909153245 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 4 | ||
| R909085709 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909084889 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| R909157345 | NOZZLE | 1 | ||
| R902601766 | SCREW PLUGD | 2 | ||
| R909087912 | SCREW PLUGD | 1 | ||
| 35 | R909151692 | SCREW PLUGD | 1 | |
| R909153816 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R902001410 | FILTER HOUSING | 1 |
