Unit · AXIAL-PISTON PUMP
A4VG71EP2DM1/32R-NZF02F001M-SR902046742
Axial piston pump Bosch Rexroth series A4VG, type code A4VG71EP2DM1/32R-NZF02F001M-S, material number R902046742. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Standard/special version: special version (-S).
- Number
- R902046742
- Type code
- A4VG71EP2DM1/32R-NZF02F001M-S
- Group
- A4VG 71
- Edition
- 06/2020

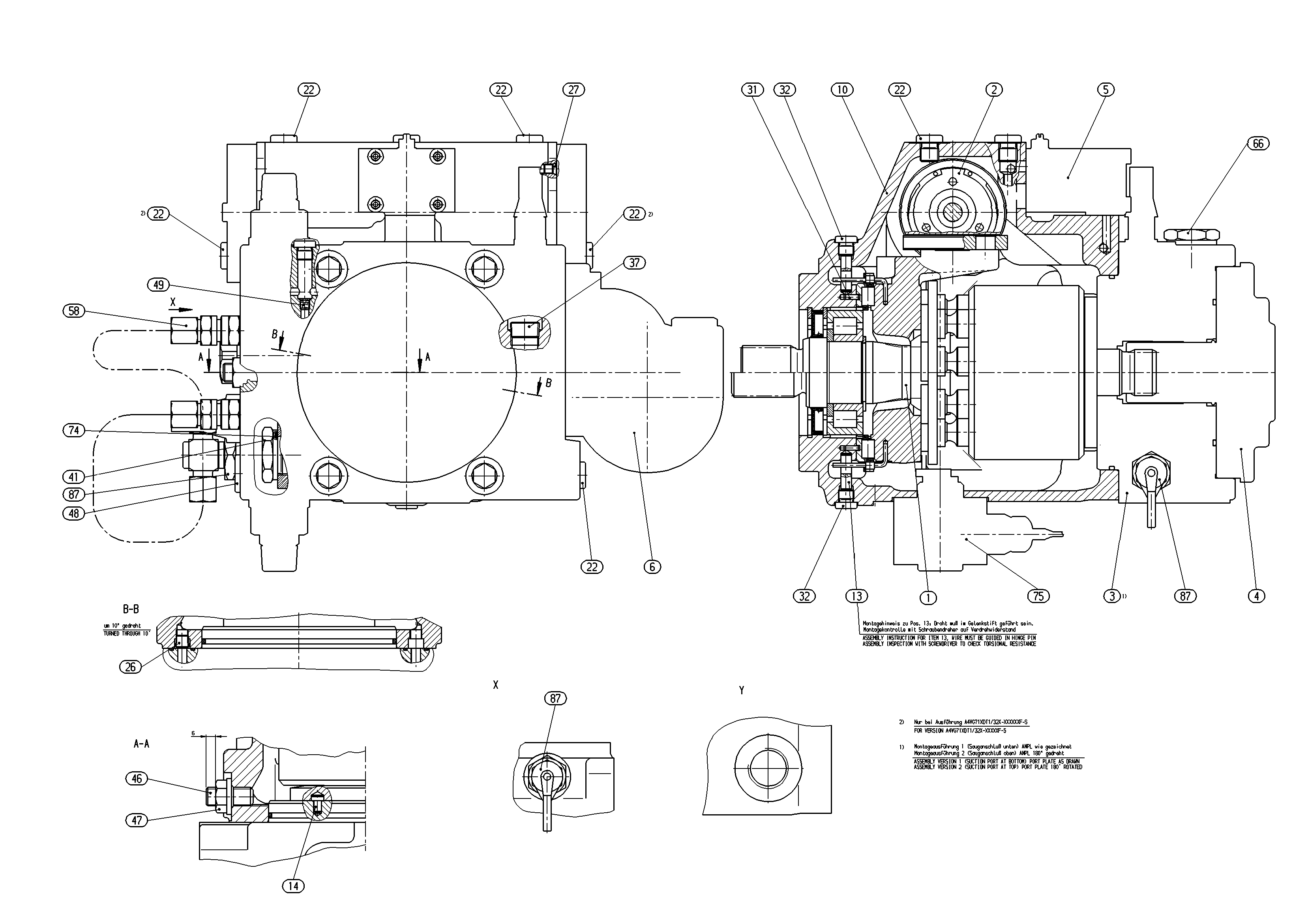

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902051389 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902017212 | CONTROL Assembly parts list →L | 1 | ||
| R909609885 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606657 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909609561 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902041024 | FILTER Assembly parts list →L | 1 | ||
| R902049691 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909651622 | ECCENTRIC BOLT | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| 24 | R909600993 | ORIFICE SCREW Assembly parts list →L | 1 | |
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 28 | R909156493 | NOZZLE | 2 | |
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909087913 | SCREW PLUG | 1 | ||
| R909651694 | THREADED REDUCING STUD | 1 | ||
| R909154982 | SETSCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R909609579 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909072419 | THREADED REDUCING STUD | 1 | ||
| R900012474 | SEAL RING | 1 | ||
| R902099888 | SWITCH ASSEMBLY Assembly parts list →L | 1 | ||
| R909831943 | MEASURING CONNECTION | 1 | ||
| 88 | R909831747 | MEASURING CONNECTION | 1 | |
| 98 | R902095634 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 71 | 71 |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Standard/special version | Special version | -S |
