Unit · PUMP TRANSMISSION
A4VG40EP1/X+A4FM40/X-ECCOM1,8MW3-WR902047654
Pump transmission Bosch Rexroth series A4VG, type code A4VG40EP1/X+A4FM40/X-ECCOM1,8MW3-W, material number R902047654. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1).
- Number
- R902047654
- Type code
- A4VG40EP1/X+A4FM40/X-ECCOM1,8MW3-W
- Group
- A4VG 40
- Edition
- 01/2020

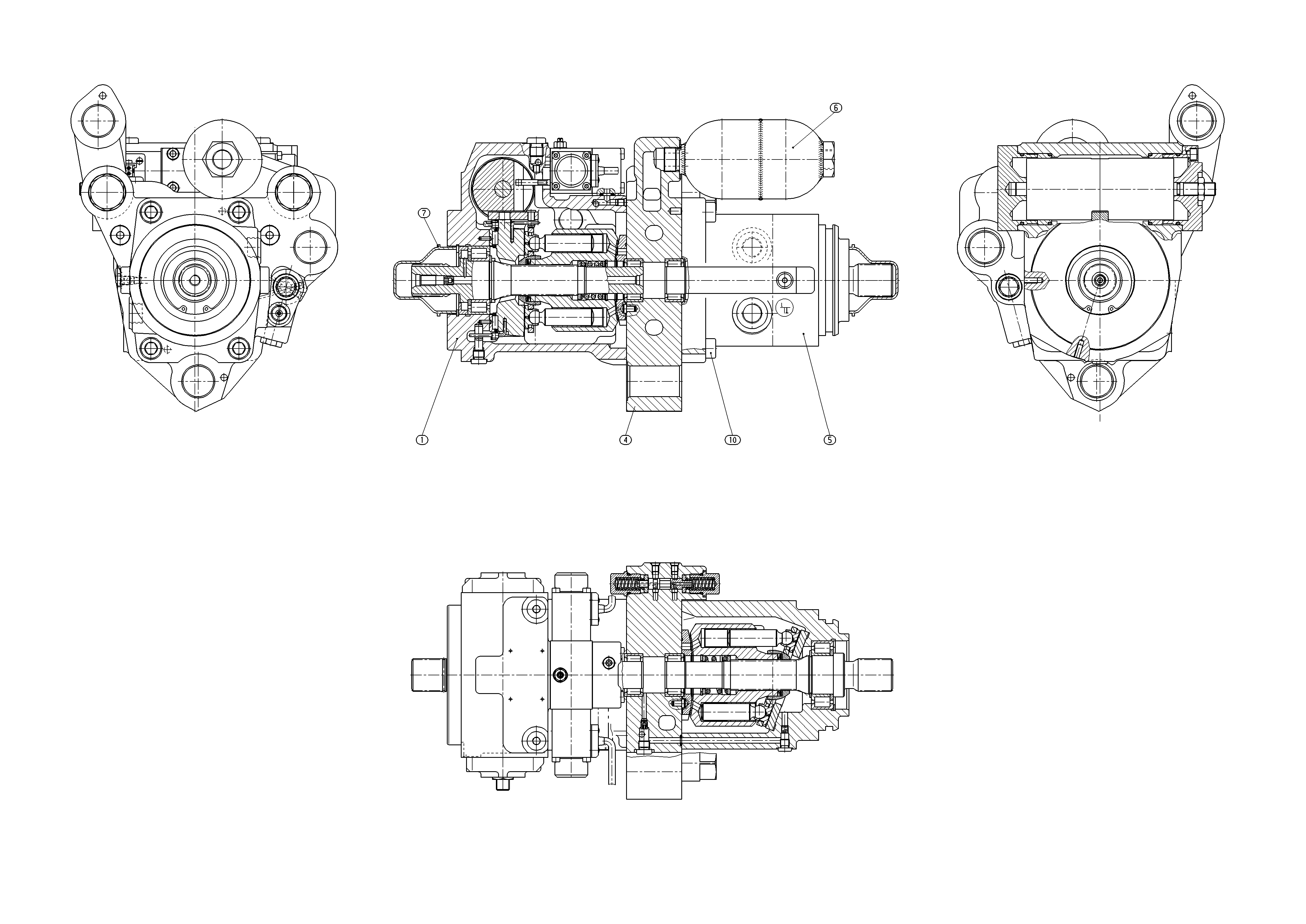

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902047653 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902047608 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902047617 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902001429 | PULSATION ACCUMULATOR | 1 | ||
| R909083103 | SOCKET HEAD CAP SCREW | 4 | ||
| 12 | R900012473 | SEAL RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 40 | 40 |
| Control device | Proportional control, U = 12 V electric | EP1 |
