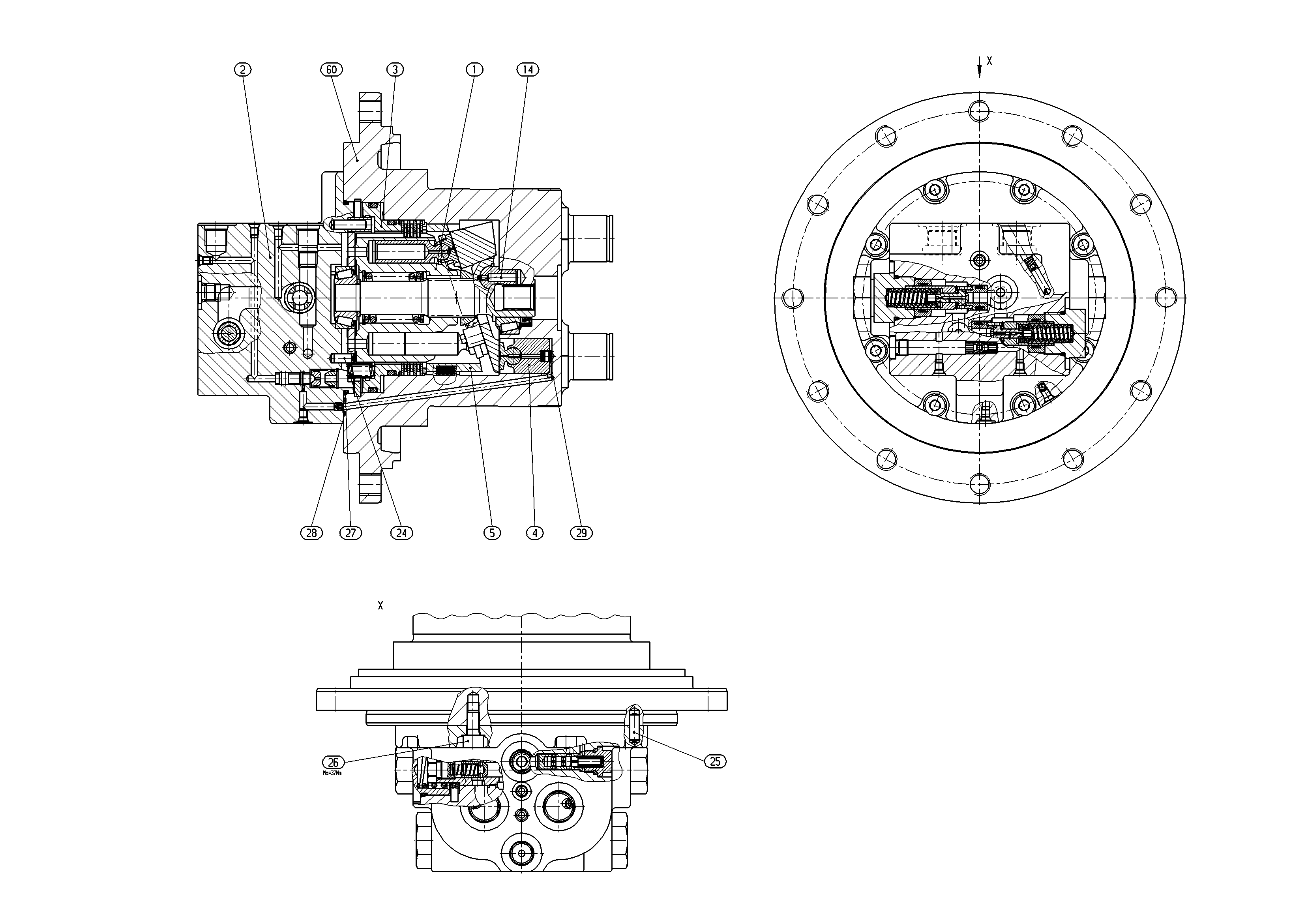

Unit · AXIAL-PISTON MOTOR
A10VT28HZ/10W158-NN81B030R902071041
Axial piston motor Bosch Rexroth series A10VT, type code A10VT28HZ/10W158-NN81B030, material number R902071041.
- Number
- R902071041
- Type code
- A10VT28HZ/10W158-NN81B030
- Group
- A10VT 28
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902071777 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902071047 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902049869 | THRUST RING Assembly parts list →L | 1 | ||
| R902071154 | ADJUSTING PISTON Assembly parts list →L | 1 | ||
| 5 | R902071046 | CRADLE STOP Assembly parts list →L | 1 | |
| R902039764 | SWIVEL BALL | 2 | ||
| 24 | R913009677 | STRAIGHT PIND | 1 | |
| R900748992 | STRAIGHT PIND | 1 | ||
| R909087241 | SOCKET HEAD CAP SCREW | 8 | ||
| R902600737 | O-RING | 1 | ||
| R910942133 | R-RING | 2 | ||
| R902043105 | COMPRESSION SPRING | 1 | ||
| R902601980 | SPINDLE | 1 |
