Unit · AXIAL-PISTON PUMP
A4VG250NVD1/32L-NZD10K071ER902079973
Axial piston pump Bosch Rexroth series A4VG, type code A4VG250NVD1/32L-NZD10K071E, material number R902079973. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 4-hole (D). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP (07). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E).
- Number
- R902079973
- Type code
- A4VG250NVD1/32L-NZD10K071E
- Group
- A4VG 250
- Edition
- 06/2020

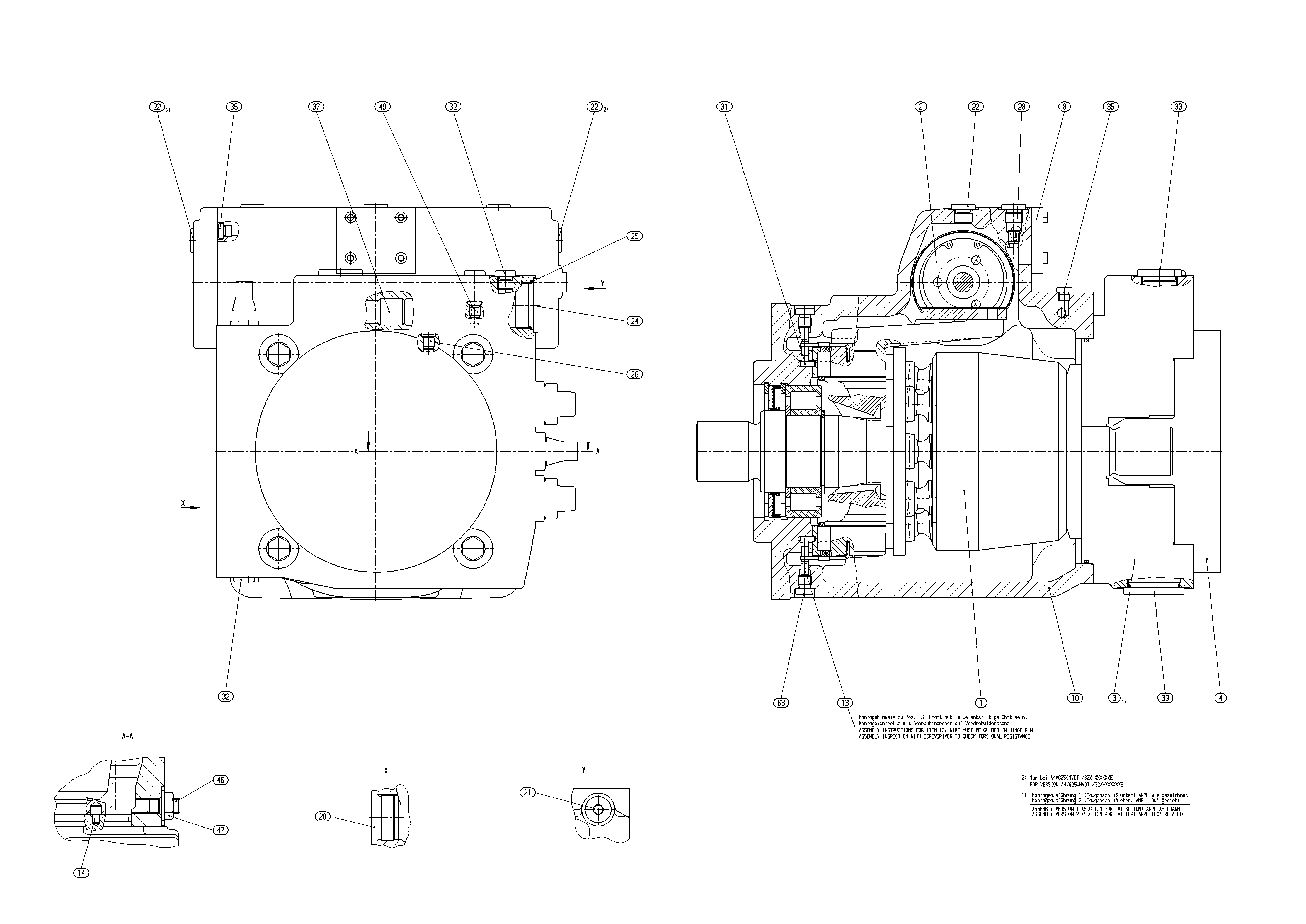

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103736 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R902007359 | CONTROL Assembly parts list →L | 1 | |
| R902016202 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902026587 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909429211 | COVER Assembly parts list →L | 1 | ||
| R909652198 | HOUSING | 1 | ||
| 13 | R902132714 | PIVOT PIN | 4 | |
| R902007362 | POITIONING PIN | 1 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909083229 | SCREW PLUG | 1 | ||
| 25 | R909085545 | O-RING | 1 | |
| R909831349 | PLUG | 1 | ||
| R909426708 | NOZZLE | 2 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909153861 | SCREW PLUG | 1 | ||
| R909153364 | SCREW PLUGD | 3 | ||
| R902600285 | SETSCREW | 1 | ||
| R909153459 | SCREW PLUG | 1 | ||
| R909157393 | SETSCREW | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R909426708 | NOZZLE | 1 | ||
| R909151692 | SCREW PLUG | 4 | ||
| 98 | R902095544 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 250 | 250 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 4-hole | D |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP | 07 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
