Unit · AXIAL-PISTON PUMP
AA11VLO190EP2/11R-NXDXXK04X-SR902119044
Axial piston pump Bosch Rexroth series A11VO, type code AA11VLO190EP2/11R-NXDXXK04X-S, material number R902119044. Nominal size: NG 190. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: electrical control with proportional solenoid positive control U = 24 V (EP2). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Mounting flange: SAE J744 ‒ 4-hole (D). Through drive: 101-2 (B) 1 in 15T 16/32DP B-B (K04). Standard/special version: special version (S).
- Number
- R902119044
- Type code
- AA11VLO190EP2/11R-NXDXXK04X-S
- Group
- A11VLO 190
- Edition
- 06/2020

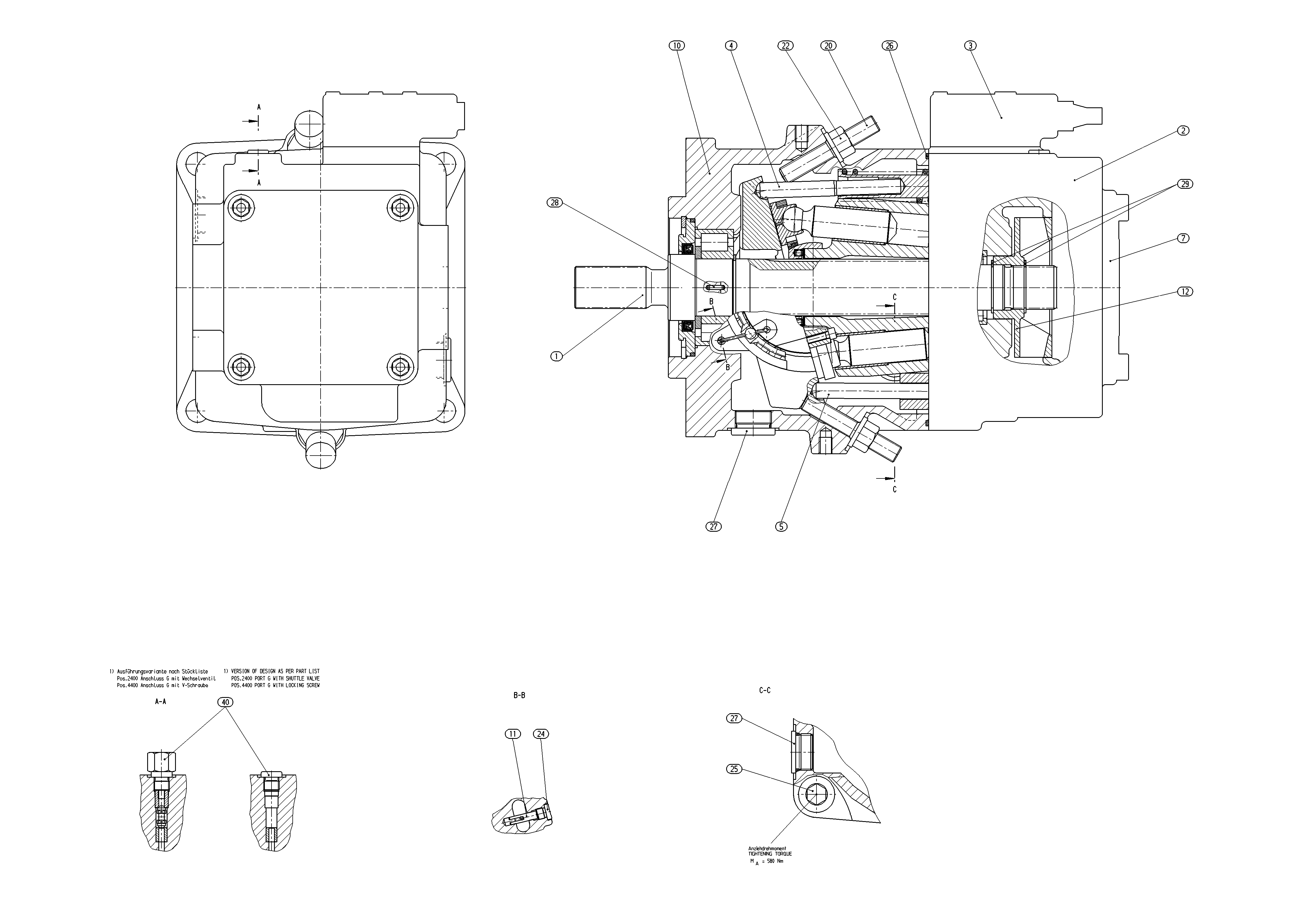

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902097543 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902081095 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R902119488 | REGULATOR Assembly parts list →L | 1 | ||
| R902007450 | CONTROL Assembly parts list →L | 1 | ||
| R902008515 | CONTROL Assembly parts list →L | 1 | ||
| R902033820 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902120459 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449866 | IMPELLER, RIGHT-HAND ROTATION | 1 | ||
| R909921095 | SETSCREW | 2 | ||
| R909153328 | SEALING NUTD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909084762 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601050 | O-RINGD | 1 | ||
| R909153378 | SCREW PLUGD | 2 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909083362 | RETAINING RING | 1 | ||
| R902220058 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| 98 | R902095611 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 190 | 190 |
| Control device | Electrical control with proportional solenoid positive control U = 24 V | EP2 |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Through drive | 101-2 (B) 1 in 15T 16/32DP B-B | K04 |
| Standard/special version | Special version | S |
