Unit · AXIAL-PISTON PUMP

A4VG90EP4DM1/32R-NZF02F001MH-SR902122700

Axial piston pump Bosch Rexroth series A4VG, type code A4VG90EP4DM1/32R-NZF02F001MH-S, material number R902122700. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1).

Number: R902122700
Type code: A4VG90EP4DM1/32R-NZF02F001MH-S
Group: A4VG 90
Edition: 05/2020

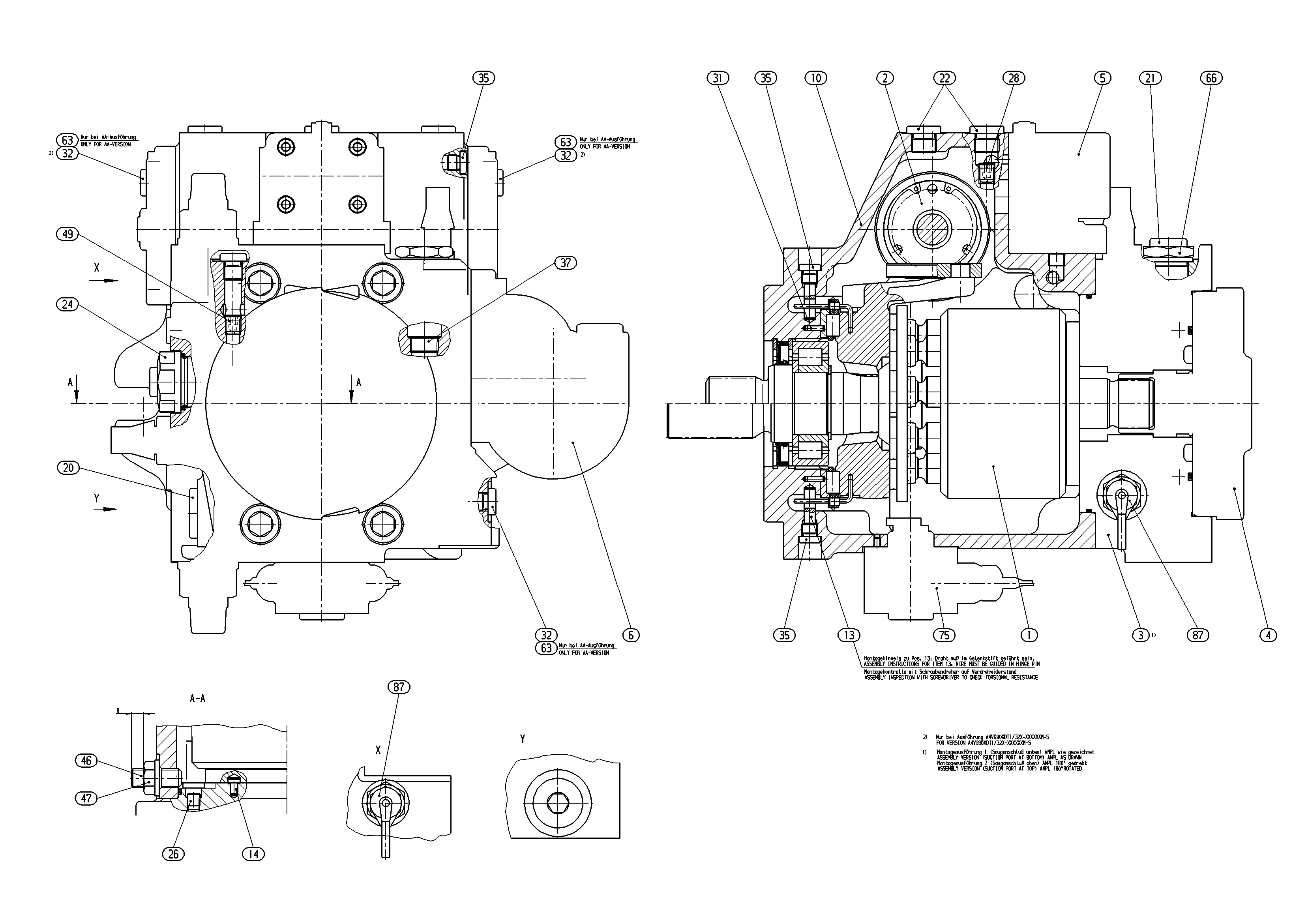

A4VG90EP4DM1/32R-NZF02F001MH-S — Drawing

Pos.	Number	Name	Qty
	R902087346	ROTARY GROUP Assembly parts list →L	1
	R902016322	CONTROL Assembly parts list →L	1
	R909608601	CONNECTION PLATE Assembly parts list →L	1
	R909606811	INTERNAL GEAR PUMP Assembly parts list →L	1
	R902113842	CONTROL MODULE Assembly parts list →L	1
	R902041024	FILTER Assembly parts list →L	1
	R902044235	HOUSING	1
	R902114380	PIVOT PIN	2
	R909650650	ECCENTRIC BOLT	1
	R909153891	SCREW PLUG	1
	R909153815	SCREW PLUGD	1
	R909153816	SCREW PLUGD	3
	R902167819	ORIFICE SCREW Assembly parts list →L	1
	R909153572	SCREW PLUG	1
	R909426704	NOZZLE	2
	R913016373	SLOTTED SPRING PIN	2
	R909151692	SCREW PLUGD	1
	R909153364	SCREW PLUGD	4
	R909087913	SCREW PLUG	1
	R909154982	SETSCREW	1
	R909087405	SEALING NUTD	1
	R909426706	NOZZLE	1
	R909072419	THREADED REDUCING STUD	1
	R902099888	SWITCH ASSEMBLY Assembly parts list →L	1
	R909831747	MEASURING CONNECTION	2
98	R902095635	SEAL KIT	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar	A4V
Operating mode	Pump, closed circuit	G
Size (NG)	90	90
Control device	Proportional control electric with inlet filtration in P U = 24 V	EP4
Pressure cut-off	Pressure cut-off	D
Mechanical stroke limiter	Mechanical stroke limiter, externally adjustable	M
DA control valve	Without DA control valve	1
Series	Series 3, index 2	32
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber)	N
Drive shaft	Splined shaft for single pump DIN 5480	Z
Mounting flange	SAE J744 2+4-hole	F
Working port (port plate)	SAE working port A and B, top and bottom suction port S bottom	02
Boost pump	Integrated boost pump with and without through drive	F
Through drive	Without through drive, only for version N and F	00
High-pressure relief valve Setting range ∆pHD	High-pressure relief valve, pilot operated 100 … 420 bar with bypass	1
Standard/special version	Special version	-S

Parameters from the type code
