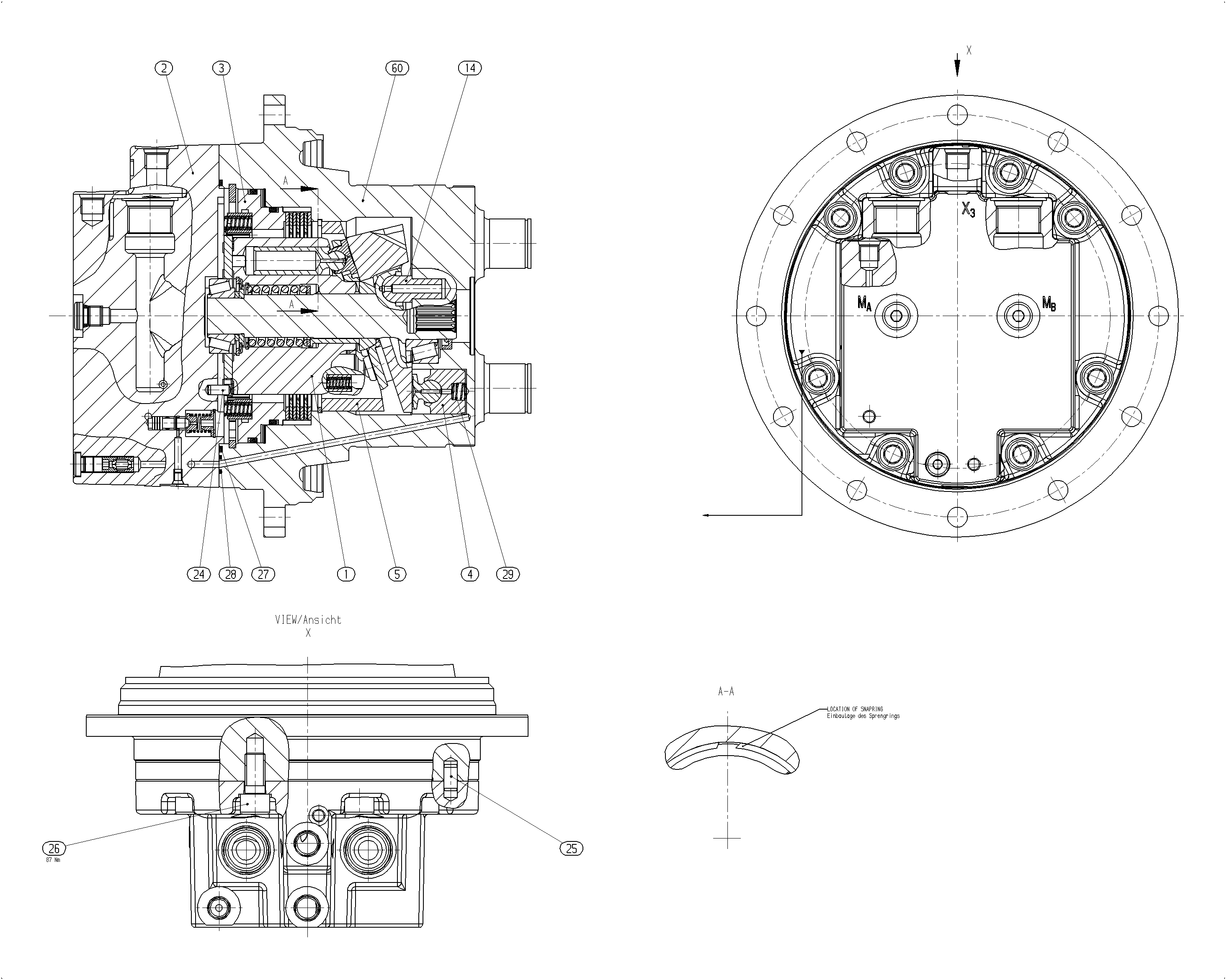

Unit · AXIAL-PISTON MOTOR
A10VT45HZ/10W225-NN16B020R902152787
Axial piston motor Bosch Rexroth series A10VT, type code A10VT45HZ/10W225-NN16B020, material number R902152787.
- Number
- R902152787
- Type code
- A10VT45HZ/10W225-NN16B020
- Group
- A10VT 45
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902097305 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902152785 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902015554 | THRUST RING Assembly parts list →L | 1 | ||
| R902062025 | ADJUSTING PISTON Assembly parts list →L | 1 | ||
| R902049582 | CRADLE STOP Assembly parts list →L | 1 | ||
| R902035713 | SWIVEL BALL | 2 | ||
| R913009677 | STRAIGHT PIND | 1 | ||
| R913009667 | STRAIGHT PIN | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 8 | ||
| R909830453 | O-RING | 1 | ||
| R910942133 | R-RING | 2 | ||
| R902020327 | COMPRESSION SPRING | 1 | ||
| R902601936 | SPINDLE | 1 |
