Unit · AXIAL-PISTON PUMP
A10VGT090HW200/11NRNC4V92G0000AS0-0R902246999
Axial piston pump Bosch Rexroth series A10VG, type code A10VGT090HW200/11NRNC4V92G0000AS0-0, material number R902246999. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 300 bar, maximum pressure 470 bar (A10V). Additional function: without additional function (0). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluorocarbon rubber) (N). Working port: SAE working port A and B, same side right Suction port S bottom (2). High-pressure relief valve: high-pressure relief valve direct operated, fixed setting without bypass (A). Filtration boost circuit / external boost pressure supply: filtration in the boost pump suction line (S). Pressure sensor: without pressure sensor (0). Swivel angle sensor: without swivel angle sensor (0).
- Number
- R902246999
- Type code
- A10VGT090HW200/11NRNC4V92G0000AS0-0
- Group
- A10VGT 90
- Edition
- 06/2020

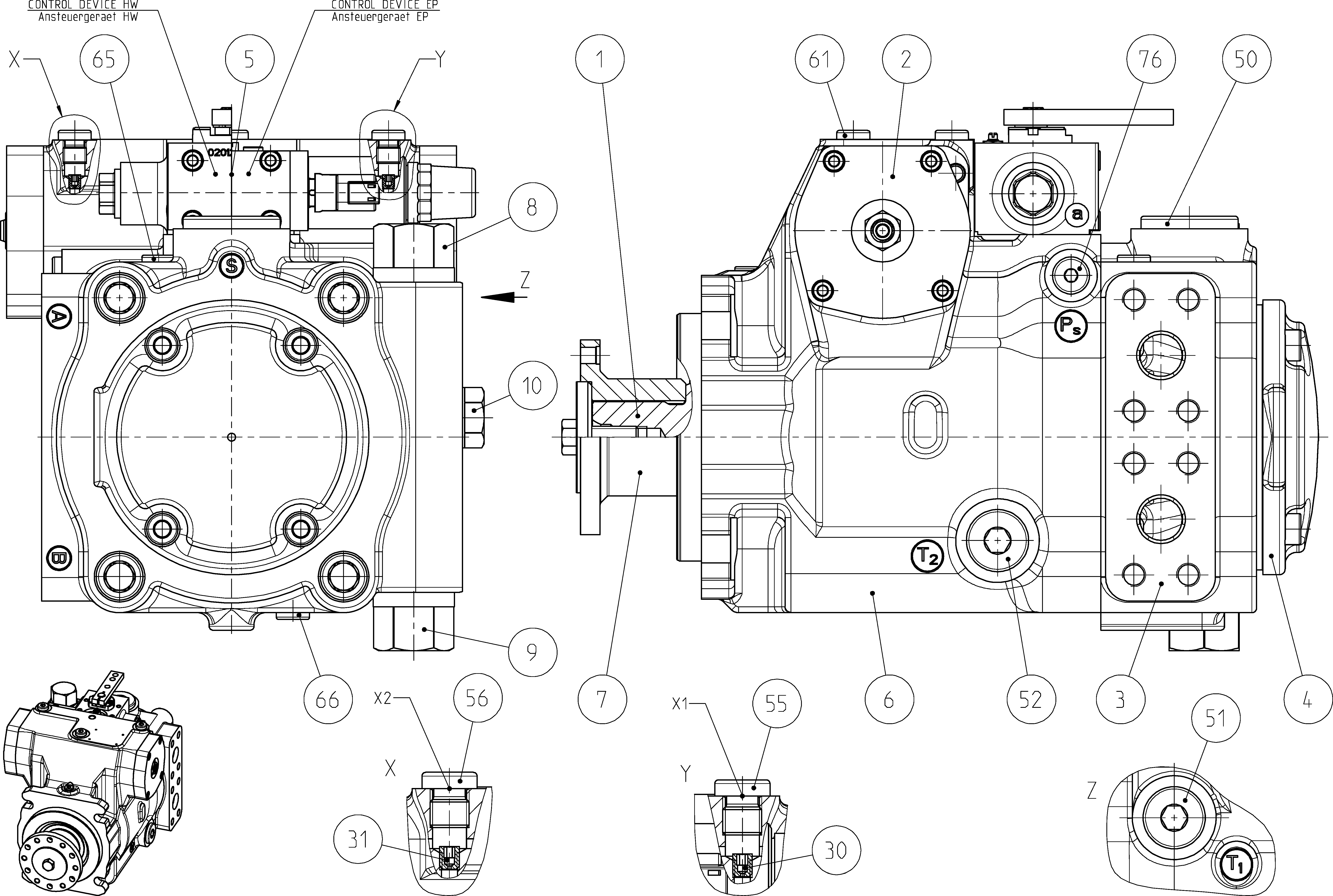

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902237773 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902219793 | CONTROL Assembly parts list →L | 1 | ||
| R902252052 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902254223 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902190501 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902229635 | HOUSING Assembly parts list →L | 1 | ||
| R902133684 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902133684 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909606779 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 300 bar, maximum pressure 470 bar | A10V |
| Size (NG) | 90 | 090 |
| Additional function | Without additional function | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluorocarbon rubber) | N |
| Working port | SAE working port A and B, same side right Suction port S bottom | 2 |
| Without through drive | 0000 | |
| High-pressure relief valve | High-pressure relief valve direct operated, fixed setting without bypass | A |
| Filtration boost circuit / external boost pressure supply | Filtration in the boost pump suction line | S |
| Pressure sensor | Without pressure sensor | 0 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
