Unit · CONTROL
V A4VSO 125/180 HD1T /30R-PR902405154
Control Bosch Rexroth series A4VSO, type code VA4VSO125/180HD1T/30R-P, material number R902405154. Nominal size: NG 125. Axial piston unit: swashplate design, variable (A4VSO). Control device: pilot pressure characteristics 10...45 bar (1).
- Number
- R902405154
- Type code
- V A4VSO 125/180 HD1T /30R-P
- Group
- A4VSO 125
- Edition
- 07/2020

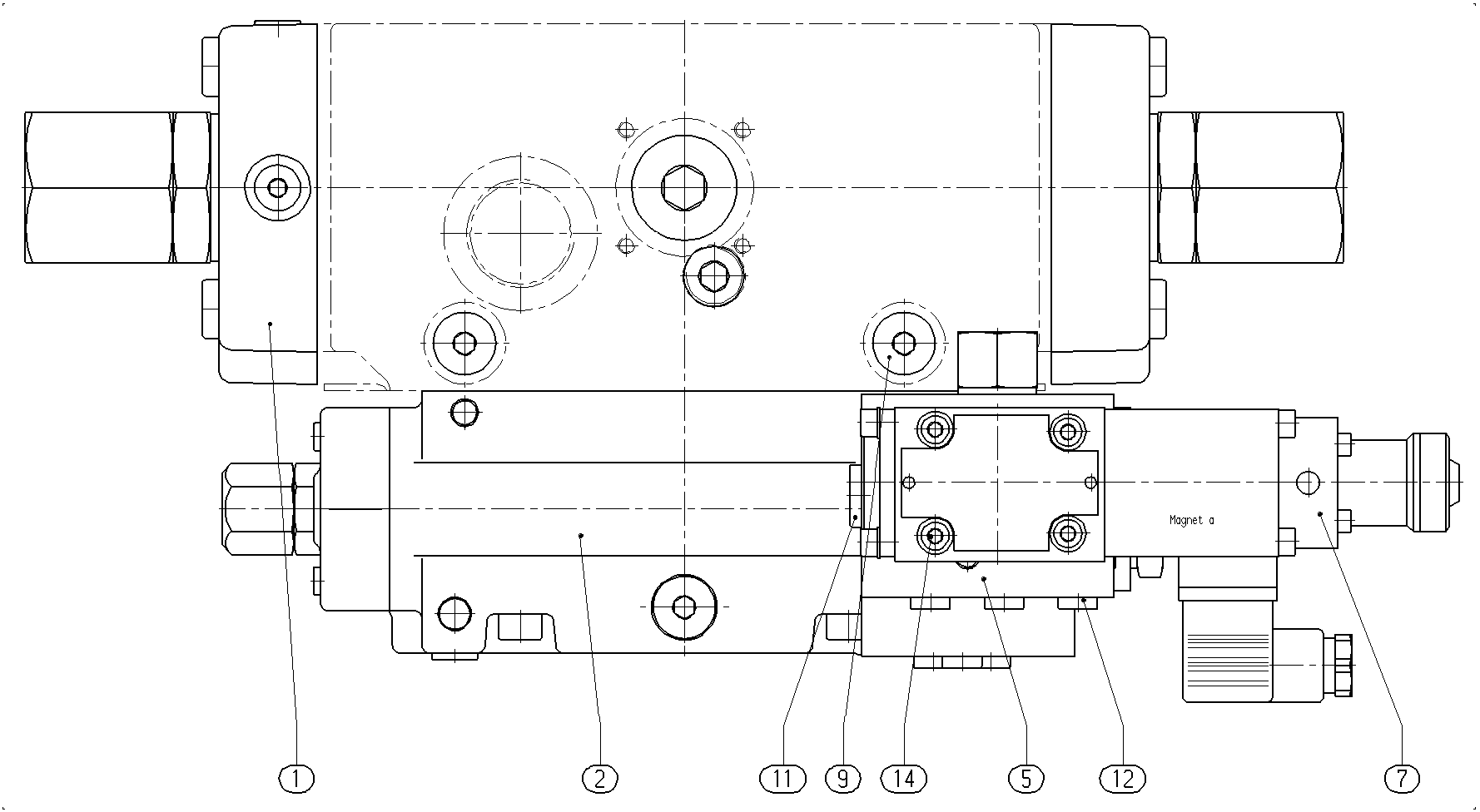

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902402704 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910992902 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989090 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902405777 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R909154024 | SCREW PLUG | 3 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A4VSO |
| Size (NG) | 125 | 125 |
| Control device | Pilot pressure characteristics 10...45 bar | 1 |
| 80 | 80 | |
| Series | Series 3, index 0 | 30 |
