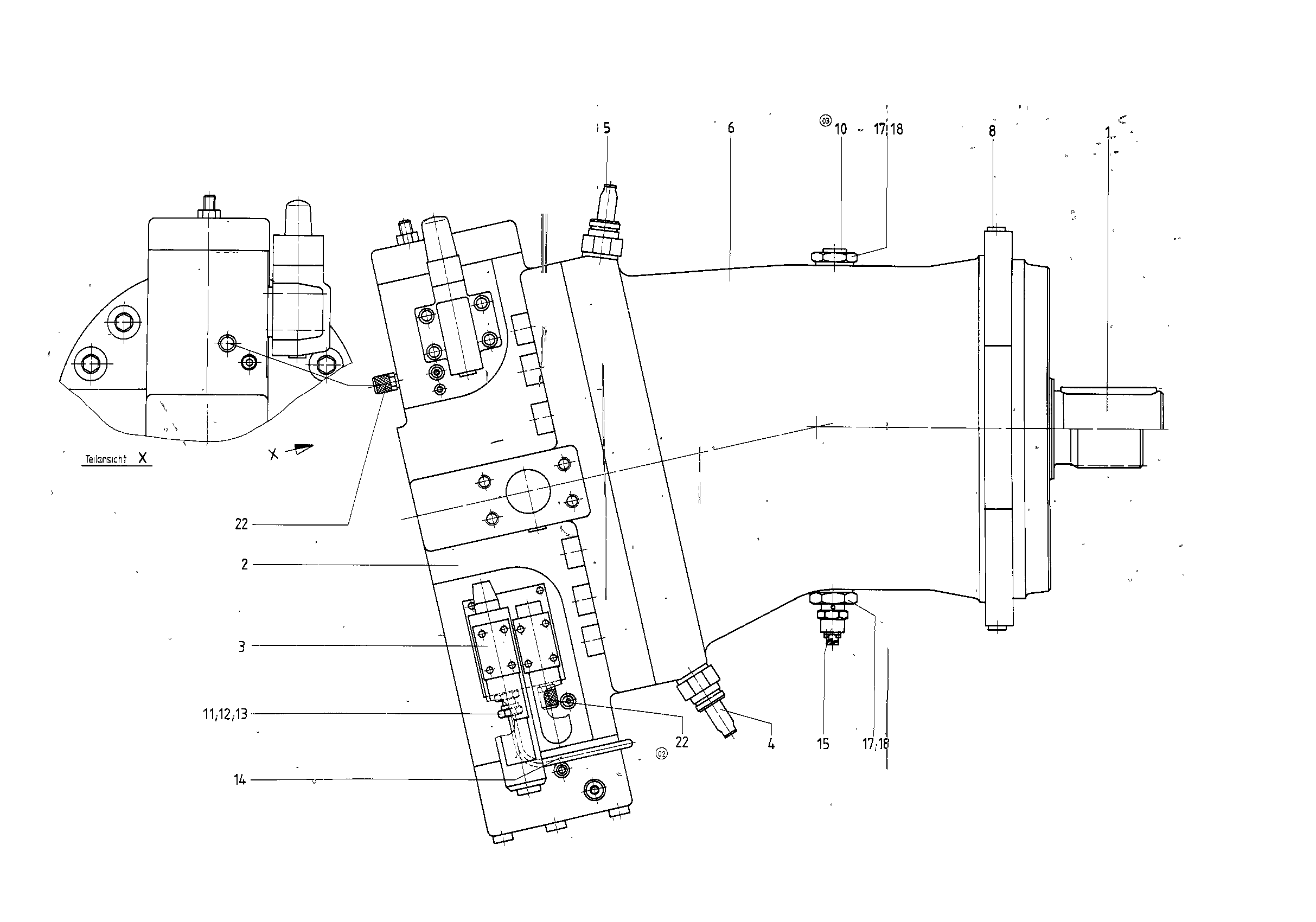

Unit · AXIAL-PISTON PUMP
A A7V-SL 1000 EL 51LZFOD -SOR902405418
Axial piston pump Bosch Rexroth series A7V, type code AA7V-SL1000EL51LZFOD-SO, material number R902405418.
- Number
- R902405418
- Type code
- A A7V-SL 1000 EL 51LZFOD -SO
- Group
- A7VSL 1000
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910942781 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910803990 | CONTROL Assembly parts list →L | 1 | ||
| R910803996 | VALVE BLOCK Assembly parts list →L | 1 | ||
| R910800568 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R910803121 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R910802069 | HOUSING | 1 | ||
| R909156651 | SCREW PLUGD | 2 | ||
| R909156654 | SCREW PLUG | 1 | ||
| R910913262 | THREADED FASTENER | 1 | ||
| R910903350 | THREADED FASTENER | 1 | ||
| R910913261 | THREADED FASTENER | 1 | ||
| R902466548 | PIPE Assembly parts list →L | 1 | ||
| R902601963 | POLLUTION SWITCH | 1 | ||
| R910902855 | REDUCTION THREADED JOINT | 2 | ||
| R910744689 | SEAL RINGD | 2 | ||
| R910939593 | TEST POINT | 2 | ||
| 30 | R910911533 | PRESERVATION SET | 1 |
