Unit · BASE UNIT
GHA4VSO355K/30R-PPB13K01R902409395
Base unit Bosch Rexroth series A4VSO, type code GHA4VSO355K/30R-PPB13K01, material number R902409395. Nominal size: NG 355. Hydraulic fluid: high-speed version (H). Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P).
- Number
- R902409395
- Type code
- GHA4VSO355K/30R-PPB13K01
- Group
- A4VSO 355
- Edition
- 05/2020

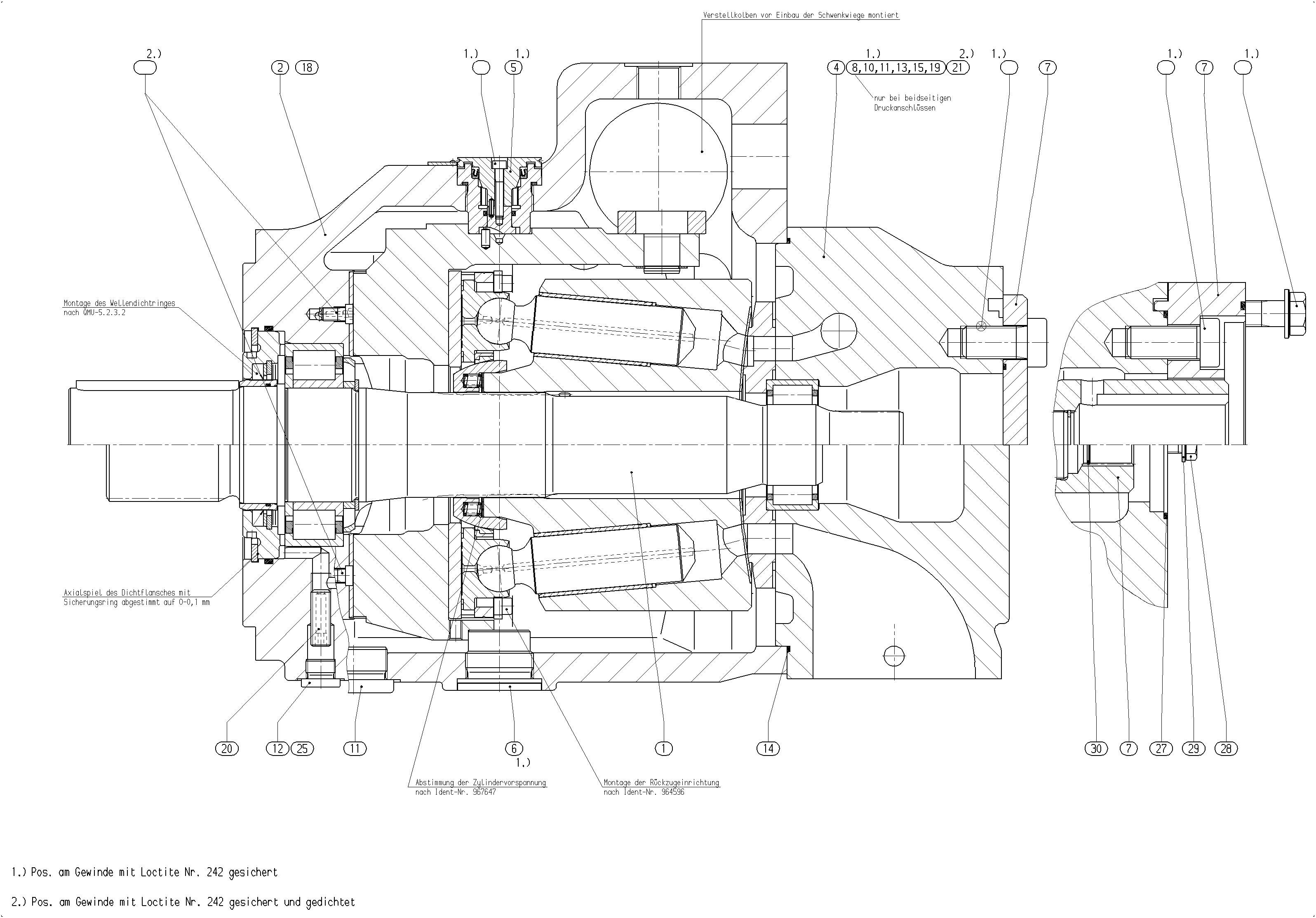

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910995015 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910993566 | PUMP HOUSING | 1 | ||
| R902402324 | CONNECTION PLATE | 1 | ||
| R910989936 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910909637 | STUD BOLT Assembly parts list →L | 1 | ||
| R910944397 | SPLINED COUPLING | 1 | ||
| R902572931 | SOCKET HEAD CAP SCREW | 8 | ||
| R910941718 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R910940894 | O-RINGD | 1 | ||
| R913028081 | AXIAL SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910993564 | THROTTLE SCREW | 1 | ||
| R910834491 | THROTTLE SCREW | 1 | ||
| R910979852 | REFERENCE PLATE | 1 | ||
| R910111945 | O-RING | 1 | ||
| R910109592 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Hydraulic fluid | High-speed version | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 355 | 355 |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Through-drive | 1 | 01 |
