Unit · AXIAL-PISTON MOTOR
AA10VEC45HZ6/52WXX-VRF211C01-S1043R902412116
Axial piston motor Bosch Rexroth series A10VM, type code AA10VEC45HZ6/52WXX-VRF211C01-S1043, material number R902412116. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Control devices: two-point control hydraulic orifice with (HZ6). Direction of rotation: viewed on drive shaft bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F). Valves: without valve (0).
- Number
- R902412116
- Type code
- AA10VEC45HZ6/52WXX-VRF211C01-S1043
- Group
- A10VEC 45
- Edition
- 06/2020

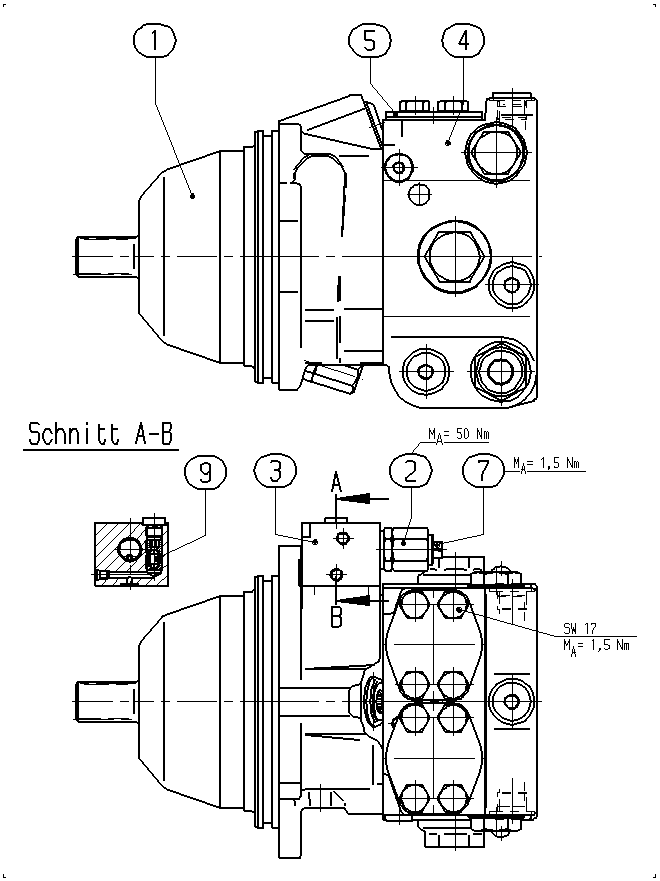

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902404629 | BASE UNIT Assembly parts list →L | 1 | ||
| R910931428 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902417132 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902404784 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902536452 | FLANGE COVER Assembly parts list →L | 2 | ||
| R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control hydraulic orifice with | HZ6 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
| Valves | Without valve | 0 |
