Unit · AXIAL-PISTON PUMP

ALA10VO74DFLR/31R-VSC42N00-S1241R902412781

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO74DFLR/31R-VSC42N00-S1241, material number R902412781. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Through drive: without through drive (N00). Special version no. 1241.

Number
R902412781
Type code
ALA10VO74DFLR/31R-VSC42N00-S1241
Group
A10VO 74
Edition
06/2020

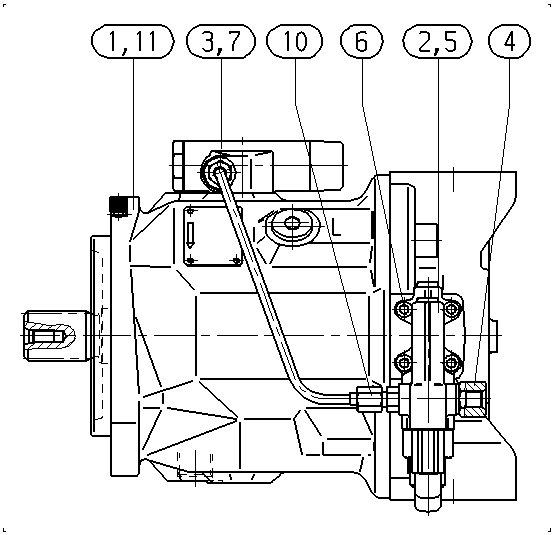

ALA10VO74DFLR/31R-VSC42N00-S1241 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910990280BASE UNIT Assembly parts list →L1
R902532425CONTROL VALVE Assembly parts list →L1
R902533933CONTROL VALVE Assembly parts list →L1
R910998282ADAPTER Assembly parts list →L1
R902434482SEAL1
R910900443SOCKET HEAD CAP SCREW4
R910764647SCREW PLUG1
R910988065PIPING Assembly parts list →L1
R902412770POWER DIAGRAM1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7474
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom42
Through driveWithout through driveN00
