Unit · AXIAL-PISTON PUMP

A A10V O 74 DFLR/31R-VSC42N00 -S2701R902473157

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DFLR/31R-VSC42N00-S2701, material number R902473157. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Through drive: without through drive (N00). Special version no. 2701.

Number
R902473157
Type code
A A10V O 74 DFLR/31R-VSC42N00 -S2701
Group
A10VO 74
Edition
06/2020

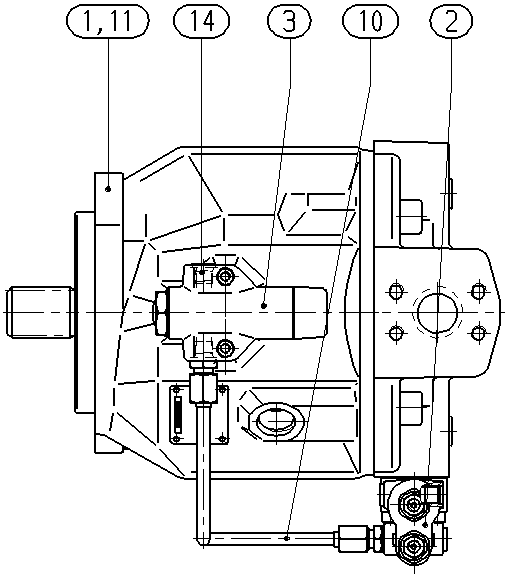

A A10V O 74 DFLR/31R-VSC42N00 -S2701 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902473167BASE UNIT Assembly parts list →L1
R902533492CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R910963807PIPING Assembly parts list →L1
R910993071POWER DIAGRAM1
R910764647SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7474
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom42
Through driveWithout through driveN00
