Unit · AXIAL-PISTON PUMP
P A4VSG 500 EO2 /30R-PPH10KB59NR902415039
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG500EO2/30R-PPH10KB59N, material number R902415039. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: 125, 2-hole 1 1/4 in 14T 12/24DP (KB5). Valves: SDVB valve block mounted (9). Filtration: without filter (N).
- Number
- R902415039
- Type code
- P A4VSG 500 EO2 /30R-PPH10KB59N
- Group
- A4VSG 500
- Edition
- 07/2020

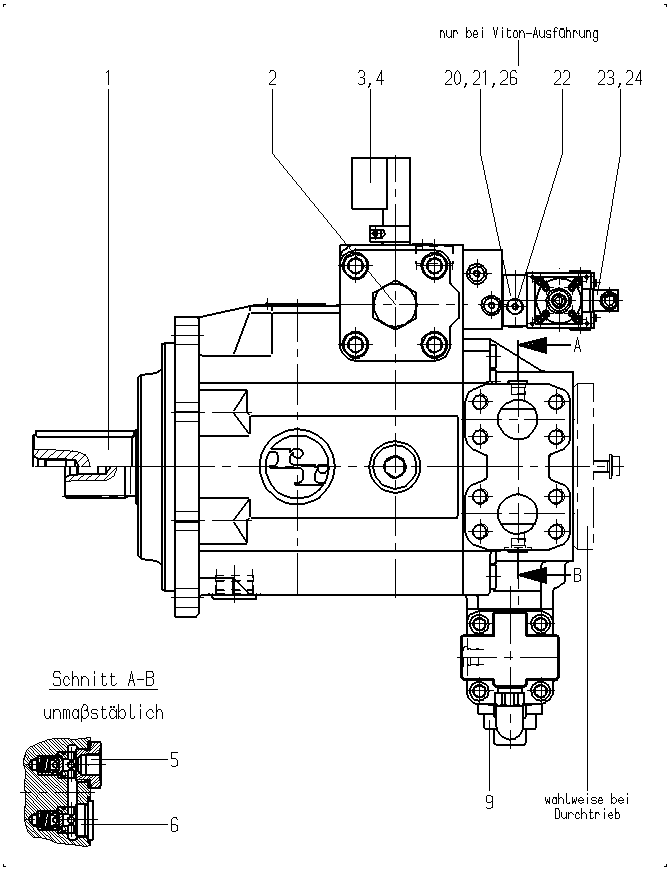

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902414799 | BASE UNIT Assembly parts list →L | 1 | ||
| R910969604 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901155 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910948834 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R910902407 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| R910944998 | THROTTLING PLATE | 1 | ||
| R910100579 | NOZZLE | 1 | ||
| R913011601 | SCREW PLUG | 2 | ||
| R902435414 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R910120189 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 2 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| 64 | R902602013 | SEAL SCREW | 1 | |
| 65 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 82 | R902602012 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 500 | 500 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | 125, 2-hole 1 1/4 in 14T 12/24DP | KB5 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
