Unit · AXIAL-PISTON MOTOR
AA10FD85/52W-VRZ81B123-S1371R902417749
Axial piston motor Bosch Rexroth series A10FD, type code AA10FD85/52W-VRZ81B123-S1371, material number R902417749.
- Number
- R902417749
- Type code
- AA10FD85/52W-VRZ81B123-S1371
- Group
- A10FD 85
- Edition
- 08/2018

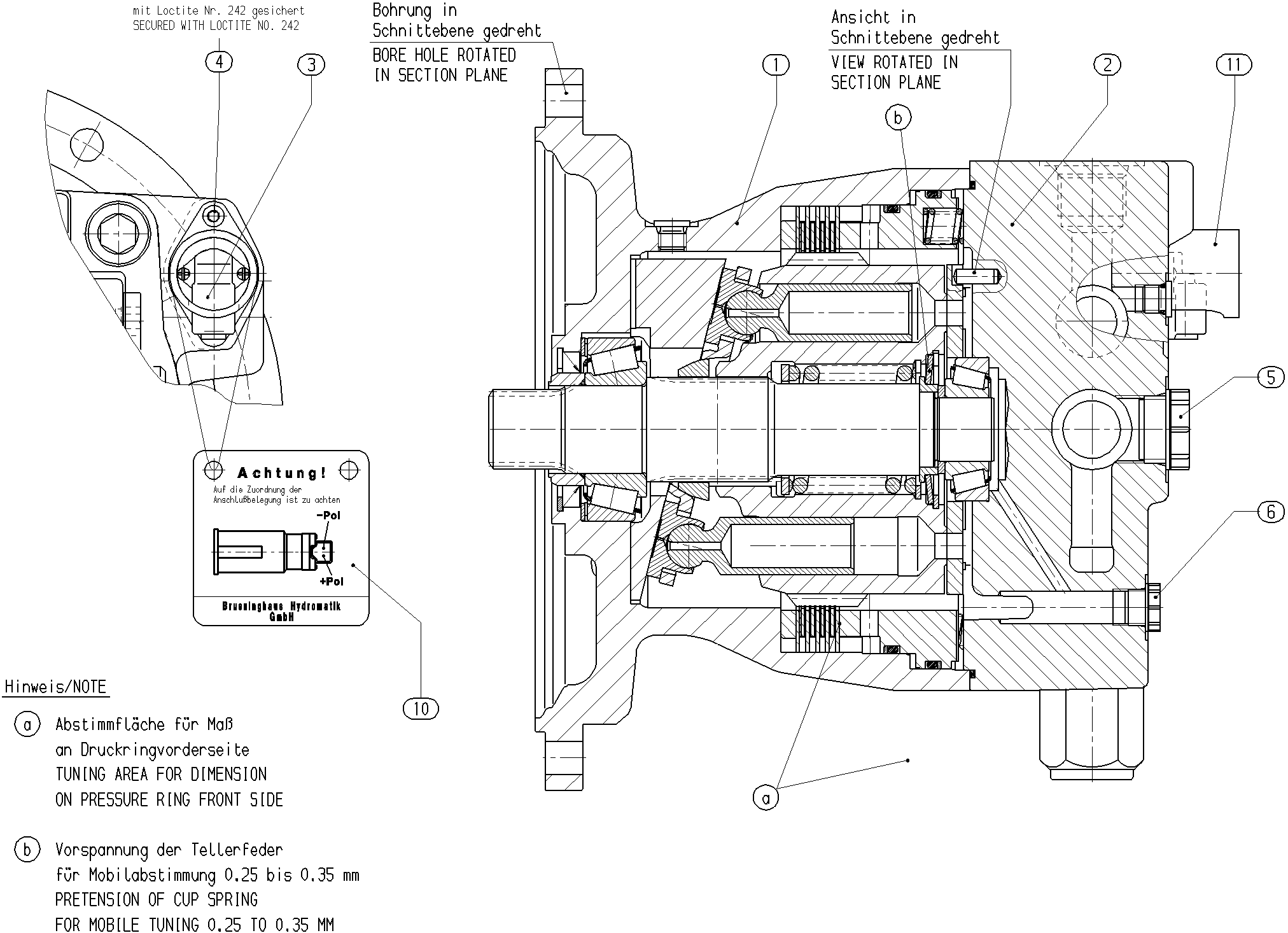

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902417750 | BASE UNIT Assembly parts list →L | 1 | ||
| R902491400 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R971060477 | PRESSURE RELIEF VALVE | 1 | ||
| R910109215 | SOCKET HEAD CAP SCREW | 2 | ||
| R902603191 | SEAL SCREW | 3 | ||
| R902602015 | SEAL SCREW | 2 | ||
| R902416144 | REFERENCE PLATE | 1 | ||
| R902544506 | PROTECTIVE TUBE | 1 | ||
| 70 | R902603191 | SEAL SCREW | 2 | |
| 71 | R902603191 | SEAL SCREW | 1 | |
| 72 | R902602015 | SEAL SCREW | 1 | |
| 73 | R902602015 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
