Unit · AXIAL-PISTON PUMP
AA10VO28DFLR/53R-VSC12H00-S1978R902426903
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFLR/53R-VSC12H00-S1978, material number R902426903. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Special version no. 1978.
- Number
- R902426903
- Type code
- AA10VO28DFLR/53R-VSC12H00-S1978
- Group
- A10VO 28
- Edition
- 06/2020

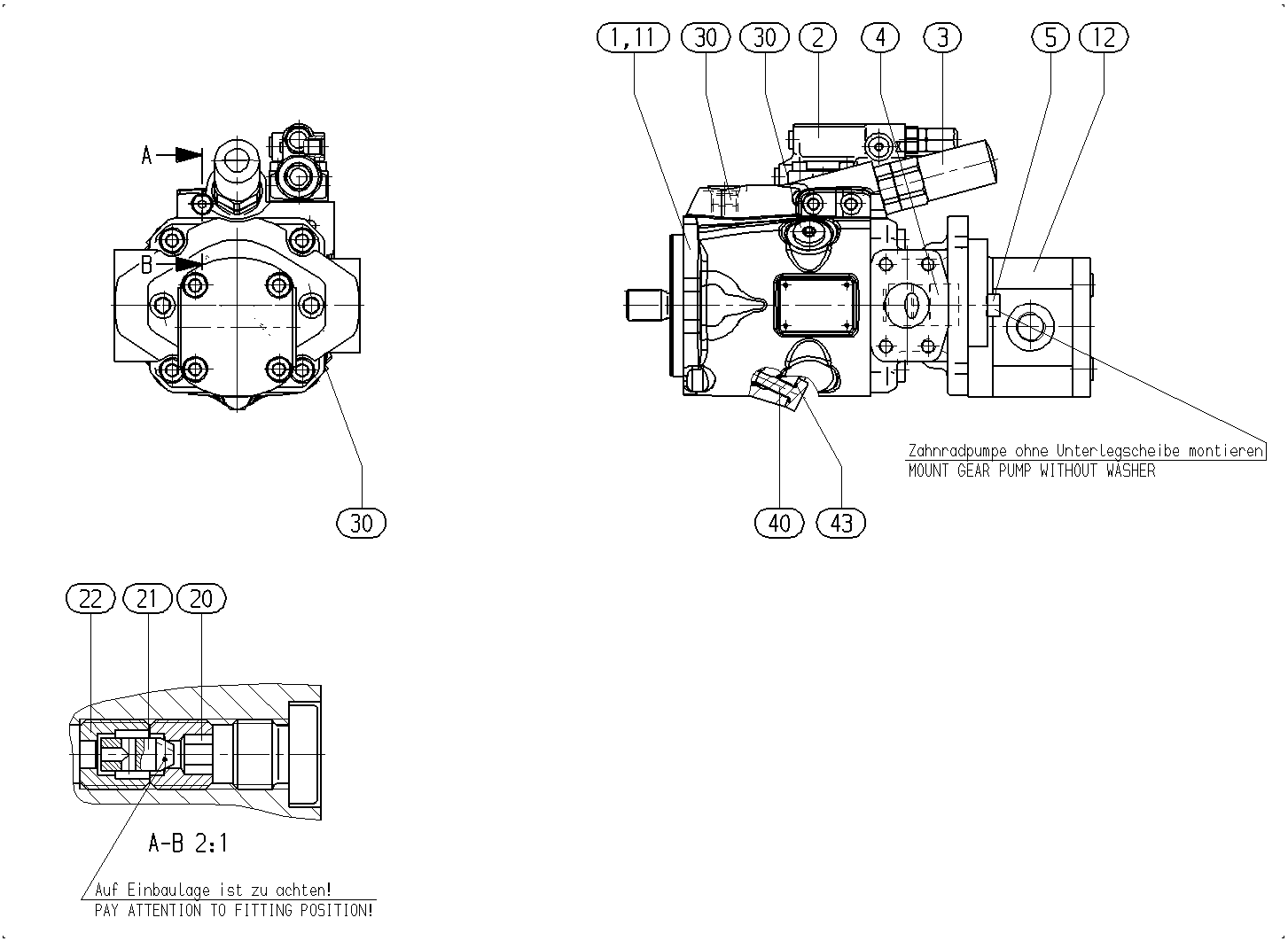

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902426502 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451616 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902470663 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910991691 | SPLINED COUPLING | 1 | ||
| R910109592 | SOCKET HEAD CAP SCREW | 2 | ||
| 0510425048 | HYDRAULIC GEAR PUMPL | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R902429190 | THROTTLE PIN | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R910901969 | SCREW PLUG | 3 | ||
| R902424207 | STOP SCREW | 1 | ||
| R910804886 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | Pressure, flow and power controller | DFLR |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
