Unit · AXIAL-PISTON PUMP
AA10VO60DFR1/52R-VUC73N00-S1704R902429788
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52R-VUC73N00-S1704, material number R902429788. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 1704.
- Number
- R902429788
- Type code
- AA10VO60DFR1/52R-VUC73N00-S1704
- Group
- A10VO 60
- Edition
- 06/2020

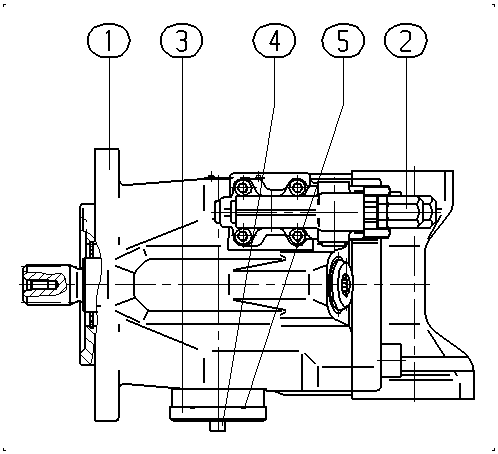

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902429639 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533231 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967428 | COVER | 1 | ||
| R910109312 | SOCKET HEAD CAP SCREW | 2 | ||
| R910756601 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | Without through drive | N00 |
Other versions 13
- R902502947 A A10V O 60 DFR1/52R-VUC73N00 -S1699
- R902433558 A A10V O 60 DFR1/52R-VUC73N00 -S1792
- R902501406 A A10V O 60 DFR1/52R-VUC73N00 -S1810
- R902429751 A A10V O 60 DFR1/52R-VUC73N00 -S1811
- R902501592 A A10V O 60 DFR1/52R-VUC73N00 -S1811
- R902439096 A A10V O 60 DFR1/52R-VUC73N00 -S1920
- R902502944 AL A10V O 60 DFR1/52R-VUC73N00 -S1699
- R902433557 AL A10V O 60 DFR1/52R-VUC73N00 -S1792
- R902501405 AL A10V O 60 DFR1/52R-VUC73N00 -S1810
- R902429749 AL A10V O 60 DFR1/52R-VUC73N00 -S1811
- R902501589 AL A10V O 60 DFR1/52R-VUC73N00 -S1811
- R902439097 AL A10V O 60 DFR1/52R-VUC73N00 -S1920
- R902429789 ALA10VO60DFR1/52R-VUC73N00-S1704
