Unit · AXIAL-PISTON PUMP

A A10V O 60 DFR1/52R-VUC73N00 -S1920R902439096

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52R-VUC73N00-S1920, material number R902439096. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 1920.

Number: R902439096
Type code: A A10V O 60 DFR1/52R-VUC73N00 -S1920
Group: A10VO 60
Edition: 06/2020

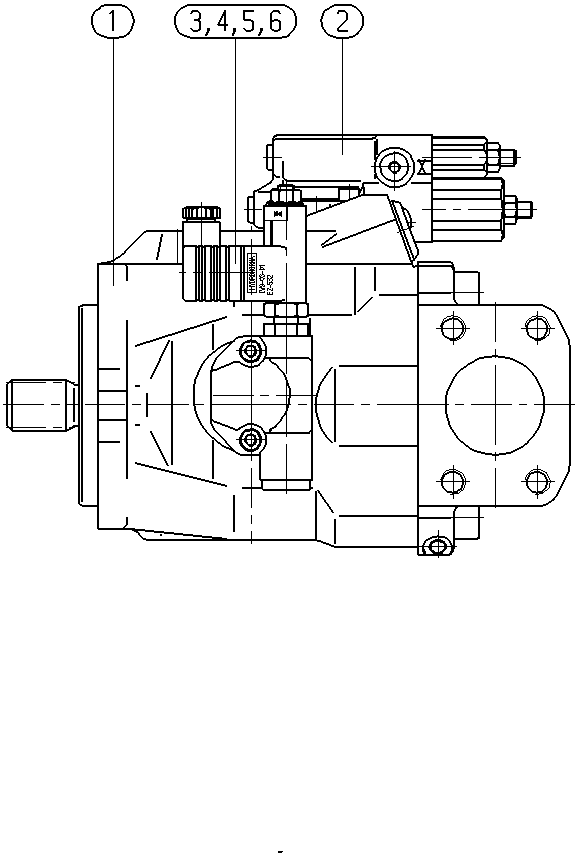

A A10V O 60 DFR1/52R-VUC73N00 -S1920 — Drawing

Pos.	Number	Name	Qty
1	R902429639	BASE UNIT Assembly parts list →L	1
2	R902450440	CONTROL VALVE Assembly parts list →L	1
3	R910986163	VALVE	1
	R910986150	CARRIER	1
5	R910920356	SOCKET HEAD CAP SCREW	2
6	R910119083	SOCKET HEAD CAP SCREW	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	60	60
Control device	with flow controller X-T plugged with flushing function	DFR1
Series	Series 5, index 2	52
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	reduced diameter, limited suitability for through drive	U
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Through drive	Without through drive	N00
