Unit · AXIAL-PISTON PUMP

A A10V O 74 DFLR/31R-VSC12N00 -S1741R902430983

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DFLR/31R-VSC12N00-S1741, material number R902430983. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 1741.

Number
R902430983
Type code
A A10V O 74 DFLR/31R-VSC12N00 -S1741
Group
A10VO 74
Edition
06/2020

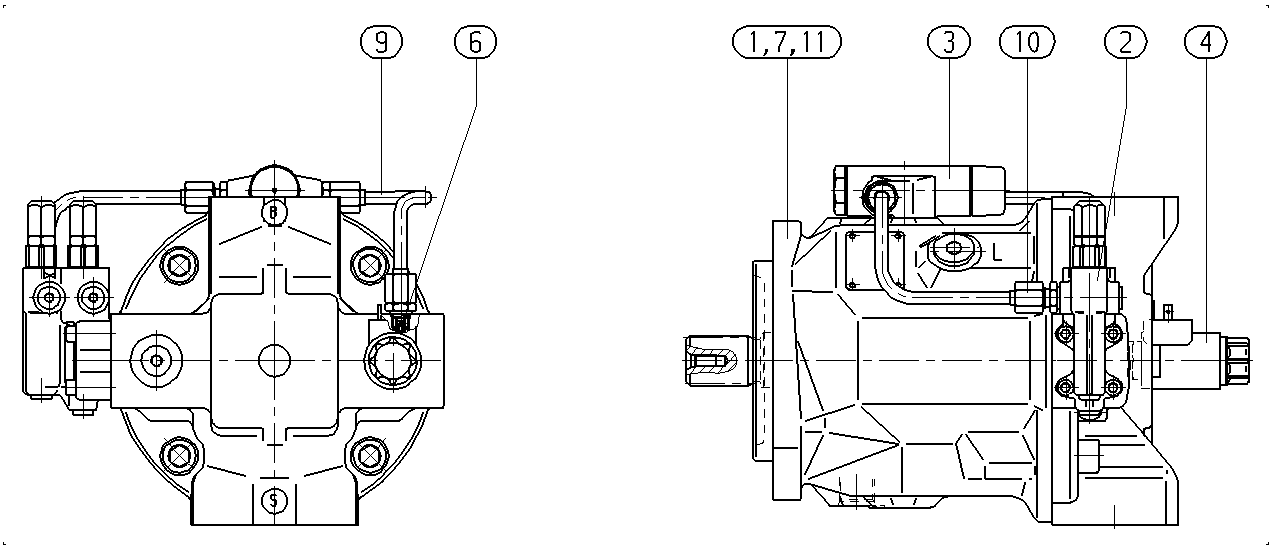

A A10V O 74 DFLR/31R-VSC12N00 -S1741 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902452538BASE UNIT Assembly parts list →L1
R902533492CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R902452073VALVE1
R909156492NOZZLE1
R910918063SIDE MARKER RING1
R902425366PIPING Assembly parts list →L1
R910963807PIPING Assembly parts list →L1
R902432041POWER DIAGRAM1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7474
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through driveWithout through driveN00

Other versions 13
