Unit · AXIAL-PISTON PUMP

AA10VO74DFLR/31R-VSC12N00-SO588R910990012

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DFLR/31R-VSC12N00-SO588, material number R910990012. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 588.

Number: R910990012
Type code: AA10VO74DFLR/31R-VSC12N00-SO588
Group: A10VO 74
Edition: 06/2020

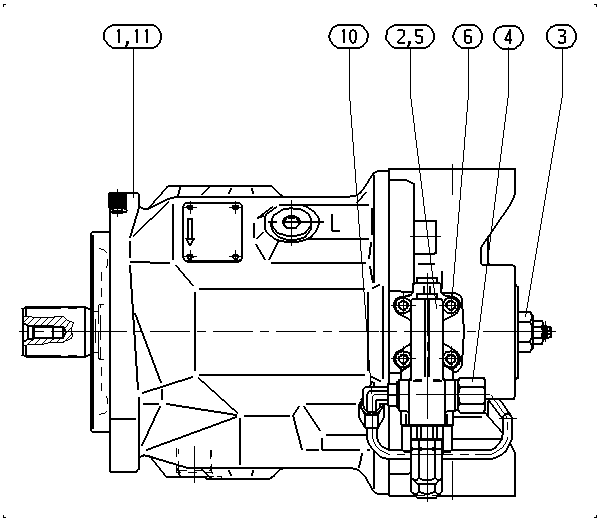

AA10VO74DFLR/31R-VSC12N00-SO588 — Drawing

Number	Name	Qty
R910990250	BASE UNIT Assembly parts list →L	1
R902472652	CONTROL VALVE Assembly parts list →L	1
R910989876	CONTROL VALVE Assembly parts list →L	1
R910986166	ADAPTER Assembly parts list →L	1
R902434482	SEAL	1
R910900443	SOCKET HEAD CAP SCREW	4
R910965914	PIPING Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	74	74
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive	12
Through drive	Without through drive	N00

Parameters from the type code
