Unit · AXIAL-PISTON PUMP
A A10V O 5 EK1 /52R-VCX14N00R902432555
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO5EK1/52R-VCX14N00, material number R902432555. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: tapered keyed shaft and UNF threaded bolt not for through-drive (C). Working port: threaded port, metric rear not for through drive (14). Through drive: without through drive (N00).
- Number
- R902432555
- Type code
- A A10V O 5 EK1 /52R-VCX14N00
- Group
- A10VO 5
- Edition
- 06/2020

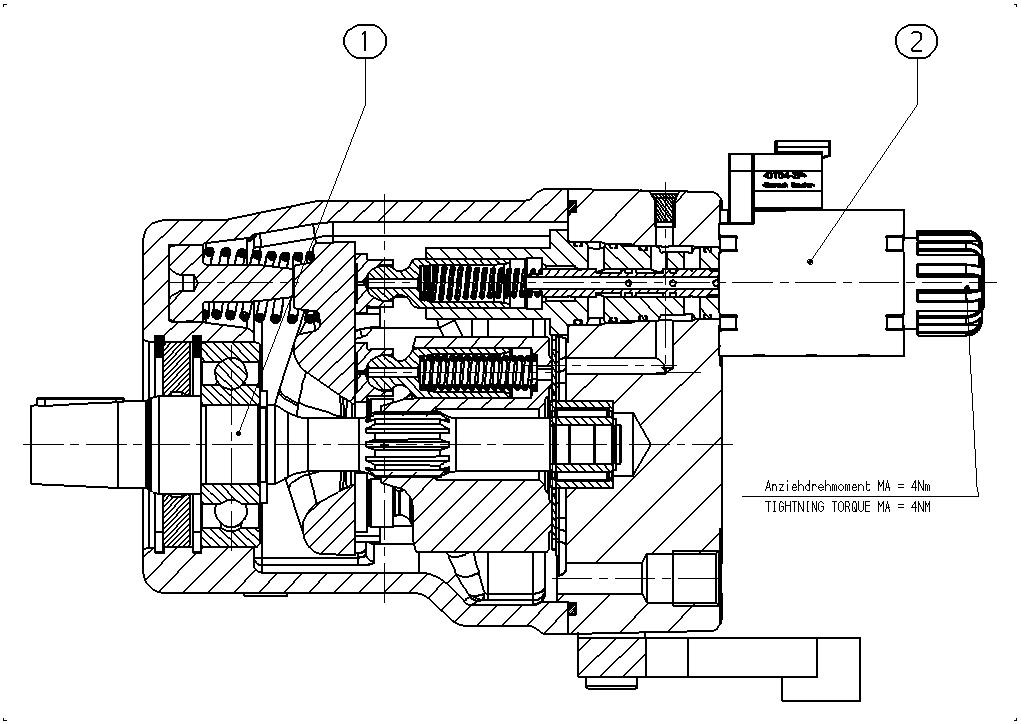

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902432556 | BASE UNIT Assembly parts list →L | 1 | ||
| R902448142 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Tapered keyed shaft and UNF threaded bolt not for through-drive | C |
| Working port | Threaded port, metric rear not for through drive | 14 |
| Through drive | Without through drive | N00 |
