Unit · BASE UNIT
GA4VSG250'EO'M/30R-PZB10N00R902436172
Base unit Bosch Rexroth series A4VSO, type code GA4VSG250'EO'M/30R-PZB10N00, material number R902436172. Nominal size: NG 250. Axial piston unit: swashplate design (A4VSG).
- Number
- R902436172
- Type code
- GA4VSG250'EO'M/30R-PZB10N00
- Group
- A4VSG 250
- Edition
- 05/2020

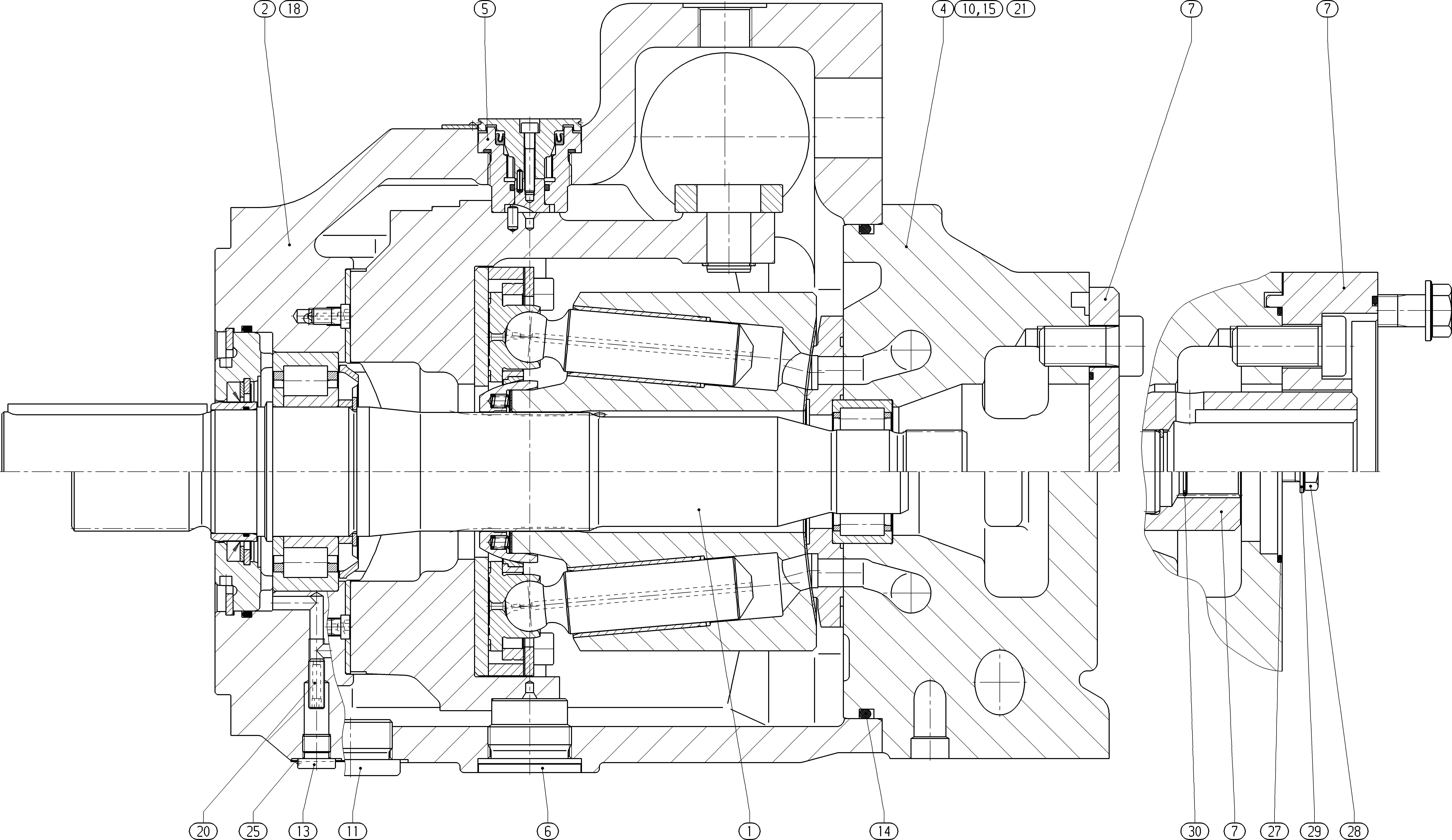

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902417873 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910976920 | PUMP HOUSING | 1 | ||
| R910989413 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910989936 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910909637 | STUD BOLT Assembly parts list →L | 1 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 4 | ||
| R910941718 | SCREW PLUGD | 3 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R910908983 | O-RINGD | 1 | ||
| R913028081 | AXIAL SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910979785 | THROTTLE SCREW | 1 | ||
| R910834491 | THROTTLE SCREW | 1 | ||
| R910979852 | REFERENCE PLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 250 | 250 |
