Unit · AXIAL-PISTON PUMP
AA4VSO40DS1/10W-PPB13T031NR902437973
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO40DS1/10W-PPB13T031N, material number R902437973. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump/motor, open circuit (O). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Through drives (for mounting options and dimensions: 125, 4-hole 32x2x14x9g (31). Filtration: without filter (N).
- Number
- R902437973
- Type code
- AA4VSO40DS1/10W-PPB13T031N
- Group
- A4VSO 40
- Edition
- 12/2019

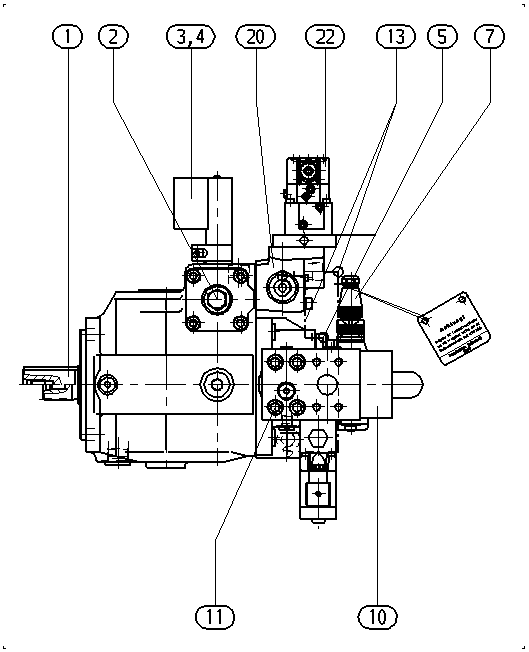

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910960811 | BASE UNIT Assembly parts list →L | 1 | ||
| R910915638 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901152 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910948229 | TACHOMETER DRIVE SHAFT Assembly parts list →L | 1 | ||
| R913037270 | SHAFT ANGLE ENCODER | 1 | ||
| R902415946 | PROTECTION BLOCK Assembly parts list →L | 1 | ||
| R910911816 | SOCKET HEAD CAP SCREW | 4 | ||
| R910992664 | PIPING PLAN Assembly parts list →L | 1 | ||
| R910922395 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902432975 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| 61 | R902805707 | SHIPPING PROTECTION | 1 | |
| 62 | R902602011 | SEAL SCREW | 1 | |
| 63 | R902421948 | SHIPPING PROTECTION | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump/motor, open circuit | O |
| Size (NG) | 40 | 40 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Through drives (for mounting options and dimensions | 125, 4-hole 32x2x14x9g | 31 |
| Filtration | Without filter | N |
