Unit · AXIAL-PISTON PUMP
AA10VO85LR8DS/53R-VSC12G60-S1902R902439695
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO85LR8DS/53R-VSC12G60-S1902, material number R902439695. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Special version no. 1902.
- Number
- R902439695
- Type code
- AA10VO85LR8DS/53R-VSC12G60-S1902
- Group
- A10VO 85
- Edition
- 06/2020

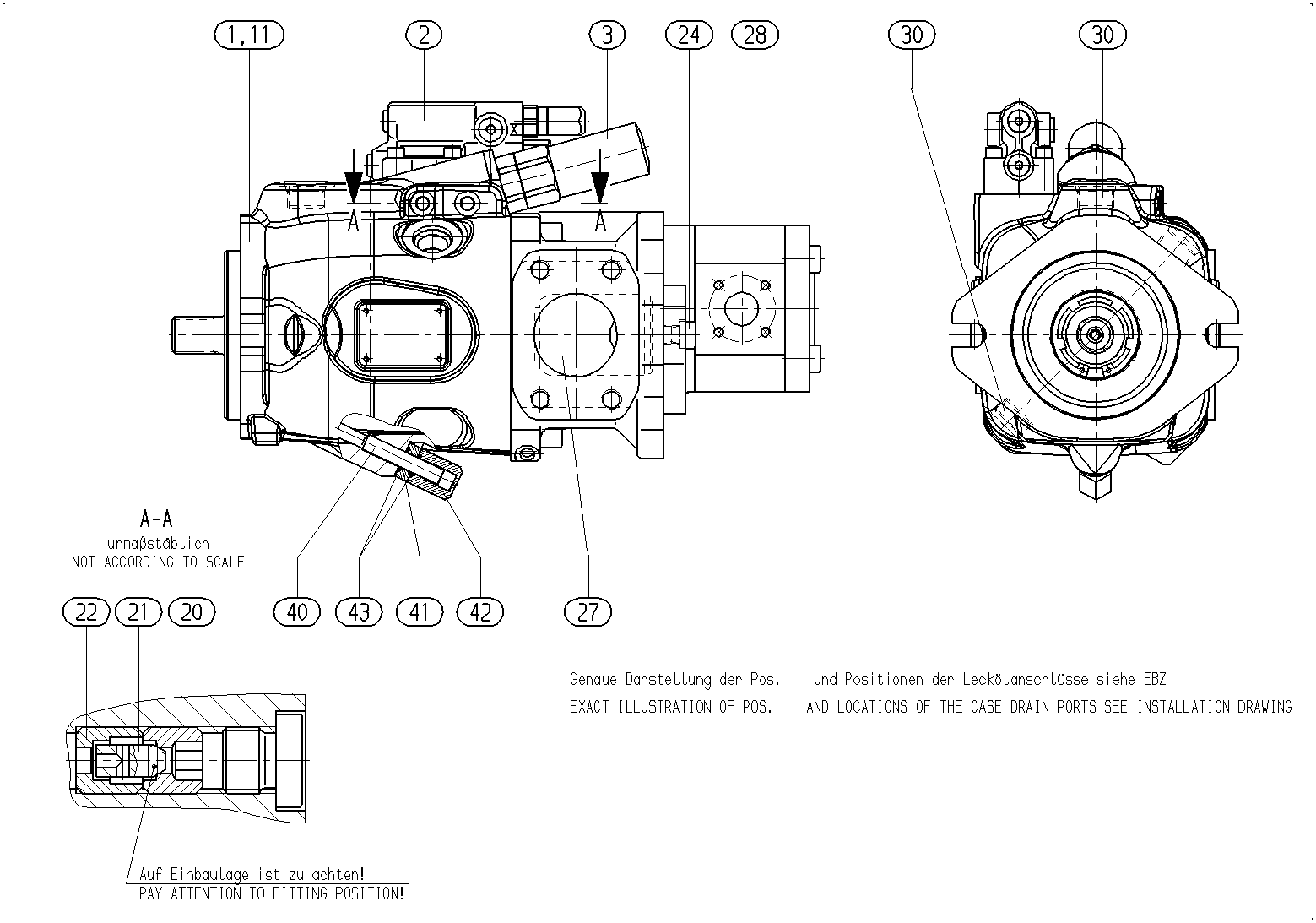

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439233 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902471492 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909425868 | THROTTLE PIN | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 | ||
| R910943560 | SPLINED COUPLING | 1 | ||
| 0510625071 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910967351 | SCREW PLUG | 2 | ||
| R902410509 | STOP SCREW | 1 | ||
| R910903390 | NUT | 1 | ||
| R910989878 | CAP NUT | 1 | ||
| R910919314 | O-RING | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
