Unit · CONTROL
V A6V M 355 HD1D /63-V010 -SO130R902439800
Control Bosch Rexroth series A6VM, type code VA6VM355HD1D/63-V010-SO130, material number R902439800. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Standard/special version: special version (-S). Special version no. 130.
- Number
- R902439800
- Type code
- V A6V M 355 HD1D /63-V010 -SO130
- Group
- A6VM 355
- Edition
- 06/2020

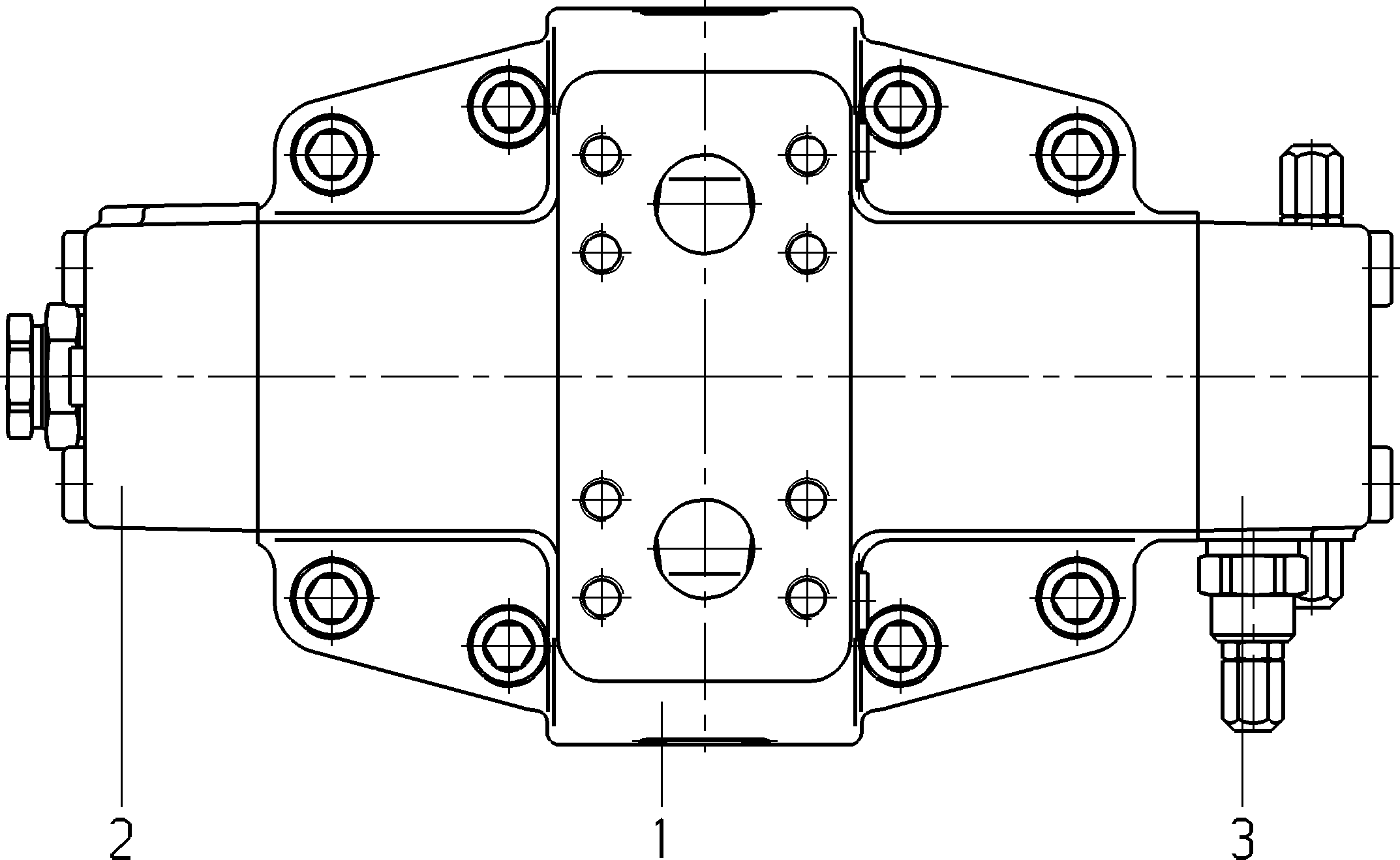

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902439801 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910976231 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R902433555 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Standard/special version | Special version | -S |
