Unit · CONTROL
V A4VSG 71 EPG /11R-VR902444862
Control Bosch Rexroth series A4VSO, type code VA4VSG71EPG/11R-V, material number R902444862. Nominal size: NG 71. Axial piston unit: swashplate design (A4VSG).
- Number
- R902444862
- Type code
- V A4VSG 71 EPG /11R-V
- Group
- A4VSG 71
- Edition
- 06/2020

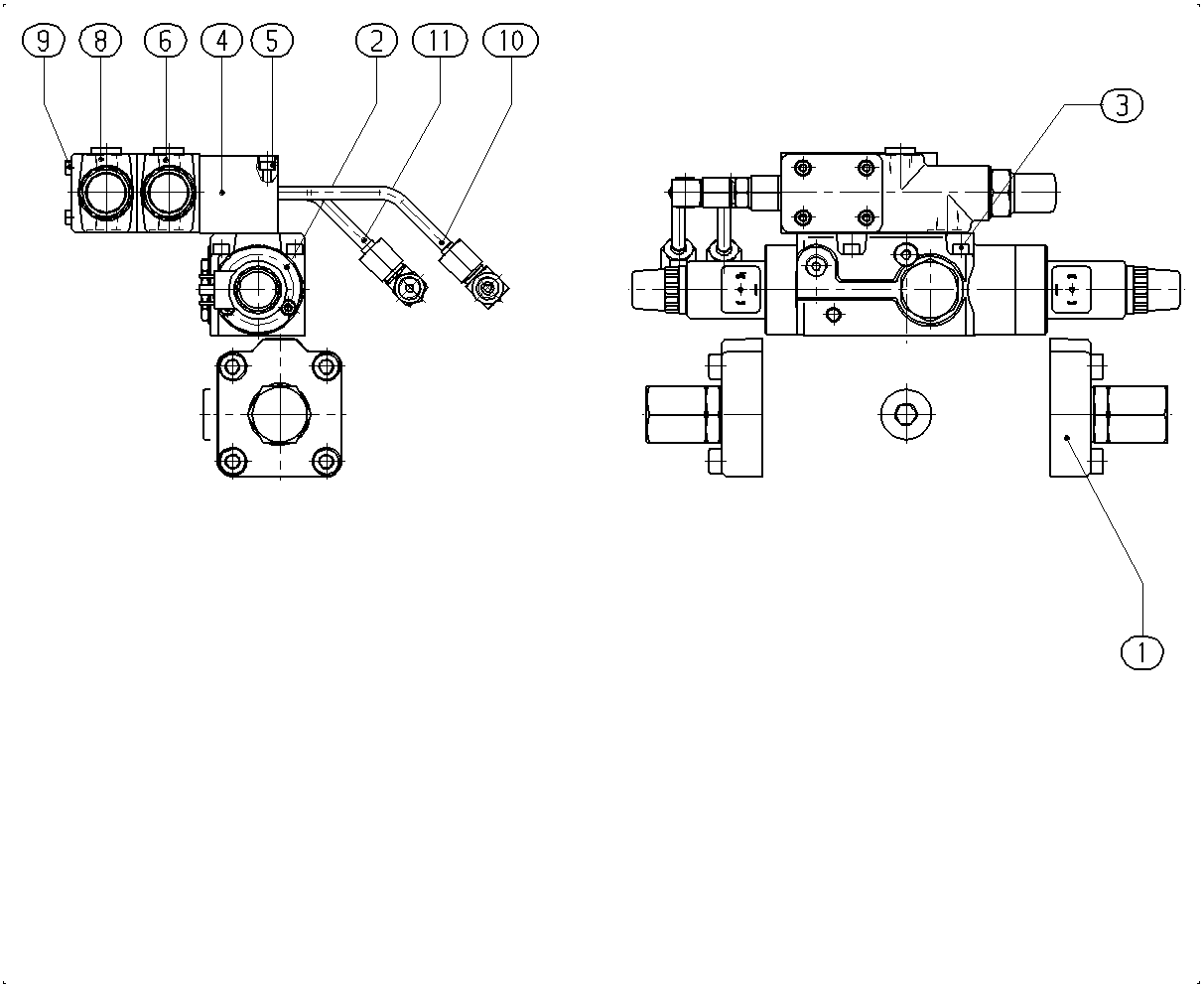

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902445505 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| R902436745 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R910979316 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| 5 | R910785105 | SOCKET HEAD CAP SCREW | 4 | |
| R910989516 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 8 | R910989398 | CONTROL VALVE Assembly parts list →L | 1 | |
| 9 | R910799998 | SOCKET HEAD CAP SCREW | 4 | |
| 10 | R902436737 | PIPING Assembly parts list →L | 1 | |
| 11 | R902444861 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 1 | 11 |
