Unit · AXIAL-PISTON PUMP

ALA10VO45LA9DS/53R-VUC62H00'BASIC'R902449383

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45LA9DS/53R-VUC62H00'BASIC', material number R902449383. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off via 240 bar, separate flow control hydraulic beginning of control.D (LA9DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Working port: top, bottom, opposite, fastening thread UNC (62). Swivel angle sensor: with electric swivel angle sensor PAL ratiometric Power supply (H).

Number
R902449383
Type code
ALA10VO45LA9DS/53R-VUC62H00'BASIC'
Group
A10VO 45
Edition
06/2020

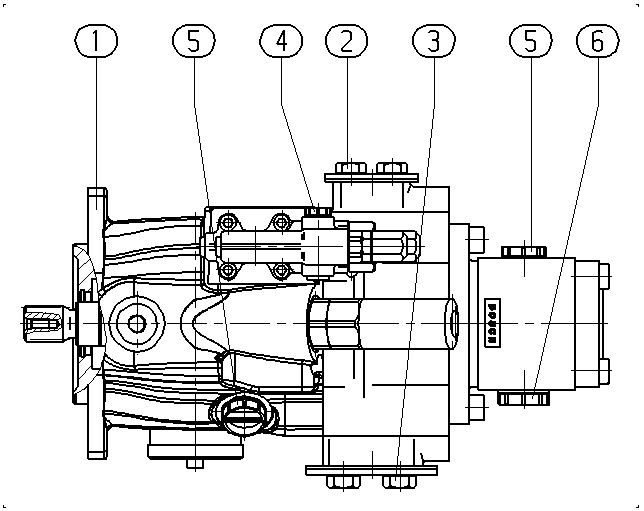

ALA10VO45LA9DS/53R-VUC62H00'BASIC' — Drawing
Pos.NumberNameQtyAdd to inquiry
R902449544AXIAL-PISTON PUMP Assembly parts list →L1
R902400579FLANGE COVER1
R902400587FLANGE COVER1
R902602014SEAL SCREW1
R902603190SEAL SCREW2
R902603191SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 barA10V
Operating modePump, open circuitO
Sizes (NG)4545
Control devicespressure cut-off via 240 bar, separate flow control hydraulic beginning of control.DLA9DS
Directions of rotationViewed on drive shaft clockwiseR
SealFKM (fluorocarbon rubber)V
Drive shaftreduced diameter, limited suitability for through driveU
Mounting flangeBased on SAE B; 2-hole ISO 3019-1 (SAE)C
Working porttop, bottom, opposite, fastening thread UNC62
Swivel angle sensorWith electric swivel angle sensor PAL ratiometric Power supplyH

Other versions 1
