Unit · AXIAL-PISTON PUMP
AA10VO45LA9DS/53R-VUC62H00'BASIC'R902449544
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45LA9DS/53R-VUC62H00'BASIC', material number R902449544. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off via 240 bar, separate flow control hydraulic beginning of control.D (LA9DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Working port: top, bottom, opposite, fastening thread UNC (62). Swivel angle sensor: with electric swivel angle sensor PAL ratiometric Power supply (H).
- Number
- R902449544
- Type code
- AA10VO45LA9DS/53R-VUC62H00'BASIC'
- Group
- A10VO 45
- Edition
- 06/2020

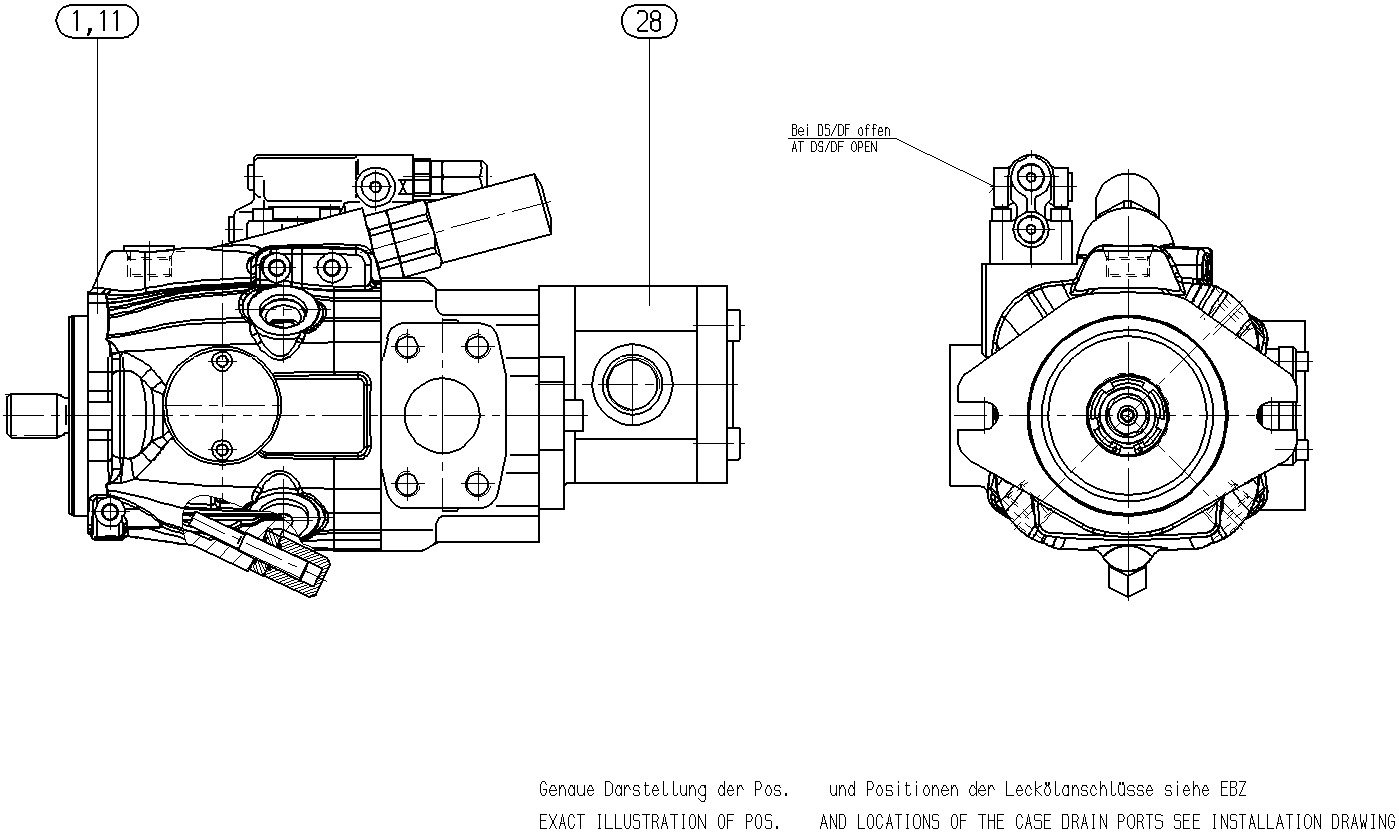

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451864 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510525041 | HYDRAULIC GEAR PUMPL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 45 | 45 |
| Control devices | pressure cut-off via 240 bar, separate flow control hydraulic beginning of control.D | LA9DS |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on SAE B; 2-hole ISO 3019-1 (SAE) | C |
| Working port | top, bottom, opposite, fastening thread UNC | 62 |
| Swivel angle sensor | With electric swivel angle sensor PAL ratiometric Power supply | H |
